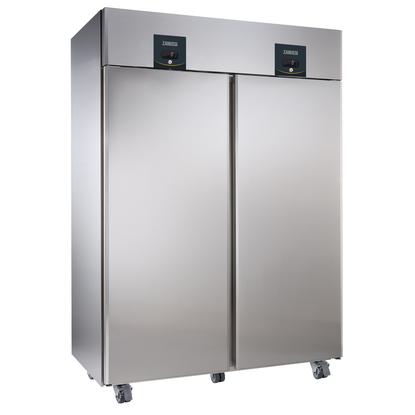

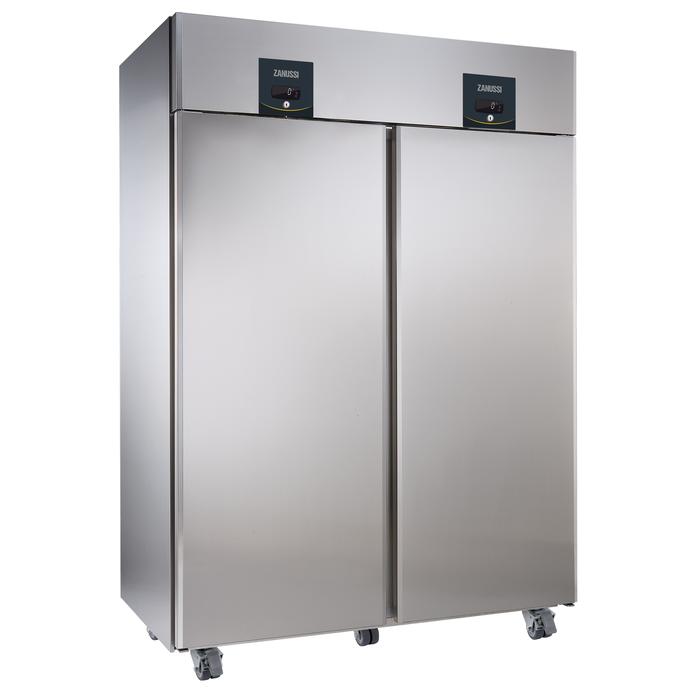

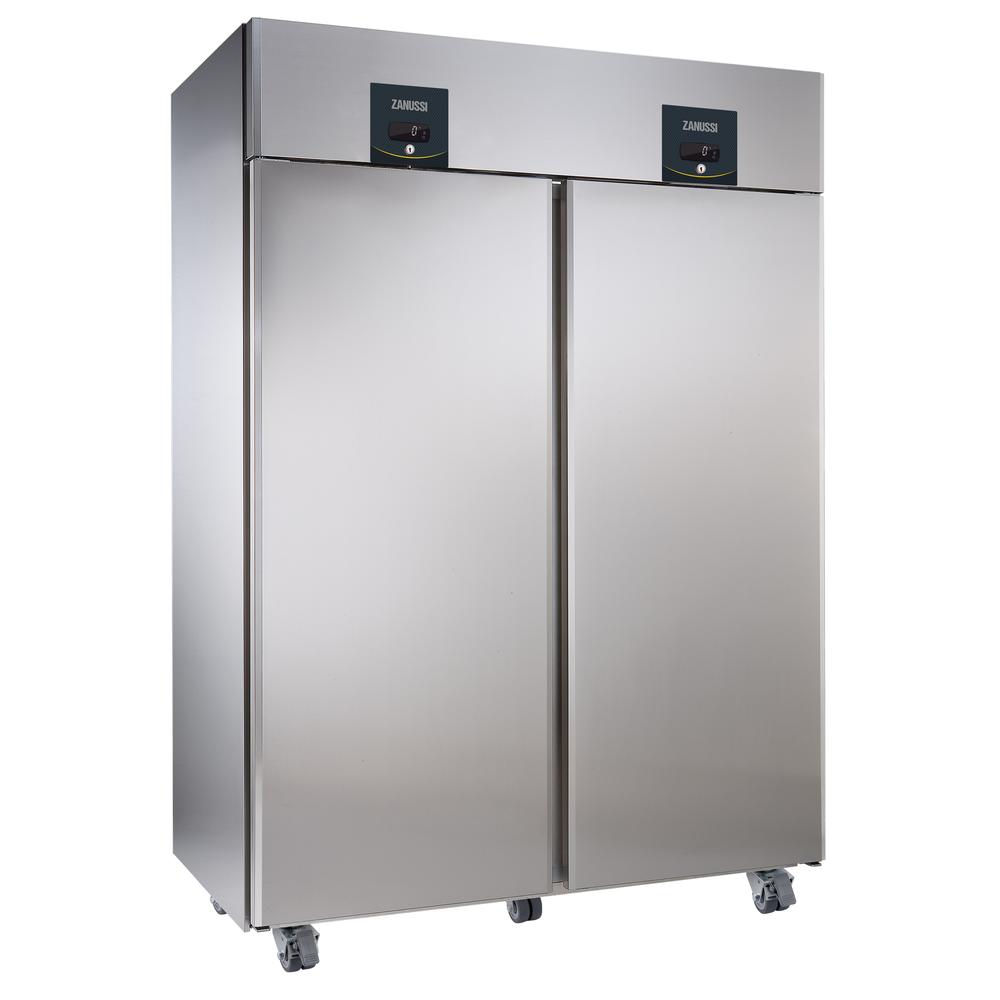

2-door, dual temperature refrigerator, with wheels, 1430lt, 0+6°C / 0+6°C, digital, stainless steel, R290 - UK plug
- Features
- Specifications
- Documents
- Accessories
- Main Features
- Cabinet fitted with up to 75 mm thickness of cyclopentane insulation for best insulating performance with 100% environmental protection (thermal conductivity: 0,020 W/m*K).
- Hidden evaporator thus guaranteeing higher storage capacity and less corrosion problems.
- Internal structure with numerous charging positions available to host grids, ensuring higher net capacity and a greater storage space.
- 60 mm-thick insulation covering the evaporator can be easily removed with a single operation.
- Optimized back to front forced air flow provide even temperature distribution and fast cooling in any conditions.
- Tropicalized unit.
- Large storage area suitable to contain 2/1 GN grids or shelves on anti-tilt runners.
- Automatic defrost.
- Right hinged full door.
- Sustainability
- Automatic evaporation of the defrosting water by hot gas on the top for energy saving.
- Door switch stops the fan when door is opened to avoid cold air exiting the cell, thus saving energy.
- Removable triple-chamber balloon magnetic gasket to improve insulation and reduce energy consumption and ease of cleaning.
- CFC and HCFC free, highly ecological refrigerant type: R290 (ecological gas in foam: cyclopentane). Hydrocarbon refrigerant gas R290 for the lowest environmental impact (GWP=3), to reduce green house and ozone depletion effects.
- Cleaning-free condenser: the structure of the wire frame condenser prevents dust and grease accumulation thus avoiding periodical cleaning operations and reducing energy consumption.
- User Interface & Data Management
- Integrated RS485 port to facilitate connection to a remote computer and integrated HACCP systems.
- Connectivity ready for real time access to connected appliances from remote and data monitoring (requires optional accessory).
- Easy serviceability thanks to the intuitive control panel with access via app.
- Large digital white-digit display with cabinet temperature display and setting, activation of turbo frost cycle (to rapidly cool warm loads) and possibility to activate manually the defrost cycle.
- Construction
- Easy access to the main components for maintenance.
- Stainless steel runners and supports easily disassembled.
- Anti-corrosion bottom material avoids any damage that may be caused to the cabinet by aggressive detergents employed to clean the floors.
- Doors are self-closing and can be fully opened up to 180°.
- Mounted on wheels.
- Lockable door.
- The rounded internal corners, the easily removable runners and grids allow for ease of cleaning and high hygiene standards.
- Delivered with UK plug.
- AISI 430 stainless steel internal structure and external panels.
Refrigeration Data
- Second Unit - Refrigerant Type: R290
- Control type: Digital
- Refrigeration power at evaporation temperature: -10 °C
- Operating temperature - First Unit (min-max): 0°C / 6°C
- Operating temperature - Second Unit (min-max): 0°C / 6°C
- Operating mode: Ventilated
Electric
- Supply voltage: 220-240 V/1 ph/50 Hz
- Electrical power, max: 0.4 kW
Sustainability
- Refrigerant type: R290
- GWP Index: 3
- Energy Class (EU Reg. 2015/1094): D
- Yearly and daily energy consumption (EU Reg. 2015/1094): 1427kWh/year - 4kWh/24h
- Climate class (EU Reg. 2015/1094): Heavy Duty (5)
- Energy Efficiency Index-EEI (EU Reg. 2015/1094): 72,34
Capacity:
- Number and type of grids (included): 6 - GN 2/1
Key Information:
- Net Volume: 830 lt
- Door hinges:
- External dimensions, Width: 1441 mm
- External dimensions, Depth: 835 mm
- External dimensions, Depth with Doors Open: 1480 mm
- External dimensions, Height: 2010 mm
- Number and type of doors: 2 Full
- Type of external material: Stainless Steel
- Type of internal material: Stainless Steel
- Internal panels material: Stainless Steel
- Number of positions & pitch: 44; 30 mm
- Gross capacity: 1430 lt
- Type of model (EU Regulation. 2015/1094): vertical chilled
