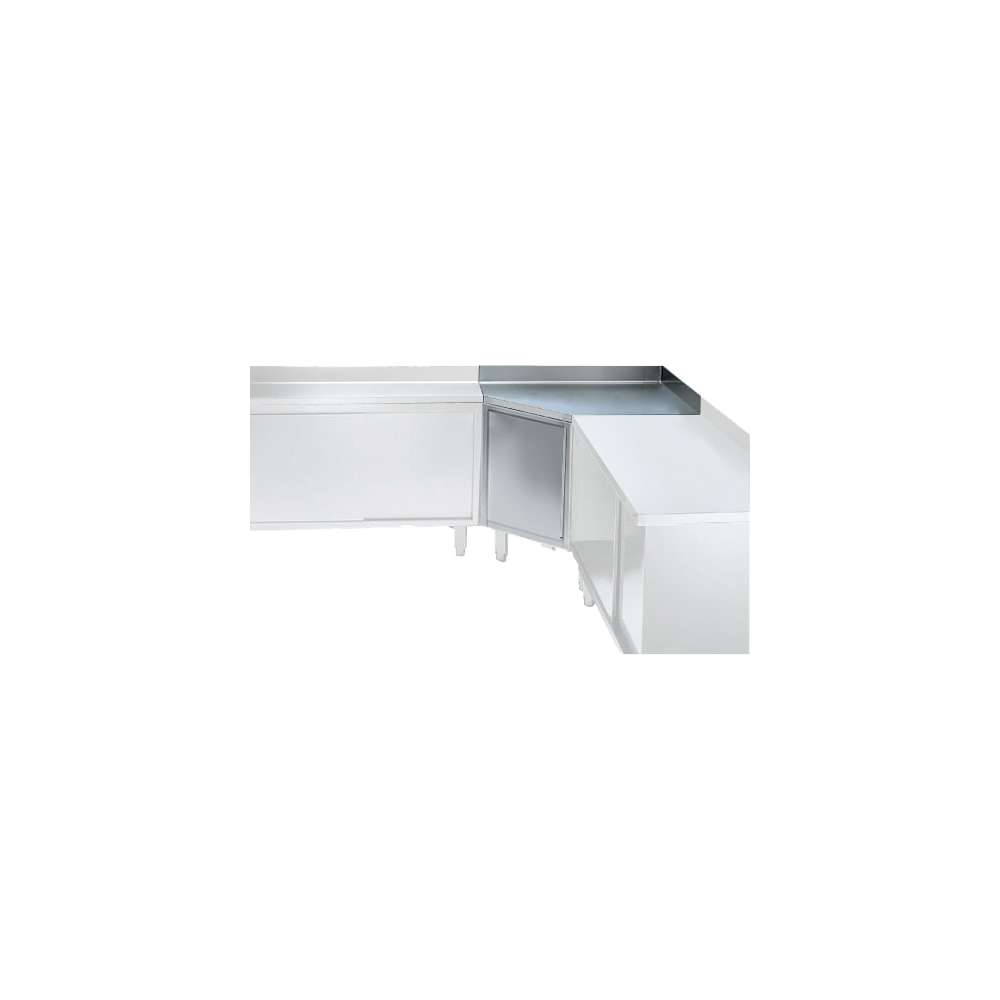

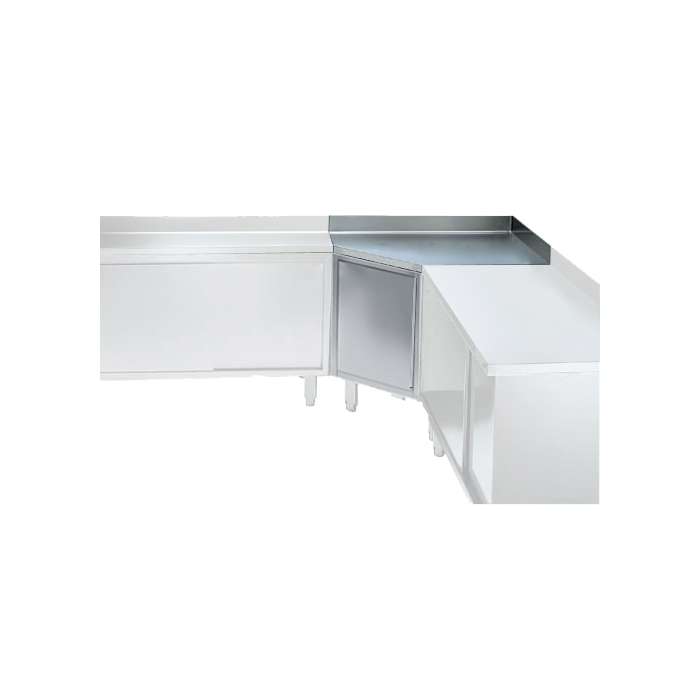

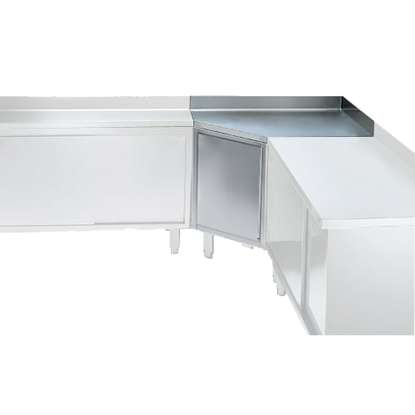

Corner Unit Worktop Cupboard with Upstand,Shelf & Sliding Doors
- Features
- Specifications
- Documents
Main Features
Handles in stainless steel for better hygiene and reliability.
Sturdiness, stability and reliability of table accurately tested.
Worktop cupboard can be mounted on 125 mm diameter castors (2 with brakes) using the optional accessory kit.
Construction
Hinged door with sound deadening internal panels, fitted with 304 AISI stainless steel hinges on the inner sides.
Intermediate shelf in stainless steel with riveted corners and trasversal reinforcement in stainless steel.
100 mm upstand with 10 mm radioused corner and 13 mm deep, designed to be used against a wall.
Base panel has 40mm high profile, is 8/10 in thickness with upturned edges and bar reinforcement. It is welded to legs for further structure reinforcement.
Upstand back completely covered with Stainless Steel welded profile.
304 AISI stainless steel feet, 150 mm high and 54 mm in diameter, adjustable by -35/+25 mm.
Inner welded frame in stainless steel to guarantee superior strength and stability.
50 mm worktop in 304 AISI stainless steel with upturned edges, incorporates an 18 mm layer of sound deadening material.
Reinforced side and base panel in 304 AISI stainless steel.
Equipped with intermediate shelf which can be positioned at three different heights.
Key Information:
- Cabinet width: 1075 mm
- Cabinet depth: 1075 mm
- Cabinet height: 610 mm
- External dimensions, Width: 1100 mm
- External dimensions, Depth: 1100 mm
- External dimensions, Height: 1000 mm
- Upstand Dimensions, Height: 100 mm
- Upstand Dimensions, Depth: 13 mm
- Upstand Dimensions, Radius: R=10
- Number and type of doors: 1 Hinged
- Worktop thickness: 50 mm
- Net weight: 85 kg
