NAU Maxi HP
1 Door Digital Freezer with internal light, 670lt (-22/-15) - R290 - Class B - available from End of March 2024
1-door freezer 670lt, -22-15°C, digital, AISI 304, with internal light, R290, Class B
Suggested green version.
- Green Benefits
- Features
- Specifications
- Documents
- Accessories
- Energy savings: Reduce your electricity bill up to 67%
* with Zanussi NAU Maxi HPe (Class B).
- Storage capacity: Offers 50L more space than market equivalents with durable AISI 304 stainless steel construction.
*Calculated on a 503lt (net volume) full·door freezer cabinet, replacing a class G appliance with a class B.
Main Features
Cabinet fitted with up to 90 mm thickness of cyclopentane insulation for best insulating performance with 100% environmental protection (thermal conductivity: 0,020 W/m*K).
Hidden evaporator thus guaranteeing higher storage capacity and less corrosion problems.
Integrated RS485 port to facilitate connection to a remote computer and integrated HACCP systems.
Internal structure with numerous charging positions available to host grids, ensuring higher net capacity and a greater storage space.
Connectivity ready for real time access to connected appliances from remote and data monitoring (requires optional accessory).
Rilsan coated grids for improved protection.
Optimized back to front forced air flow provide even temperature distribution and fast cooling in any conditions.
Tropicalized unit.
Large storage area suitable to contain 2/1 GN grids or shelves on anti-tilt runners.
Automatic defrost.
Easy serviceability thanks to the intuitive control panel with access via app.
Large digital white-digit display with cabinet temperature display and setting, activation of turbo frost cycle (to rapidly cool warm loads) and possibility to activate manually the defrost cycle.
Equipped with single phase electrical cable and Schuko plug for easy and fast installation.
Freezer model has operating temperatures that can be adjusted from -22 to -15 °C.
Right hinged full door.
Sustainability
Automatic evaporation of the defrosting water by hot gas on the top for energy saving.
Door switch stops the fan when door is opened to avoid cold air exiting the cell, thus saving energy.
Removable triple-chamber balloon magnetic gasket to improve insulation and reduce energy consumption and ease of cleaning.
CFC and HCFC free, highly ecological refrigerant type: R290 (ecological gas in foam: cyclopentane). Hydrocarbon refrigerant gas R290 for the lowest environmental impact (GWP=3), to reduce green house and ozone depletion effects.
Construction
Easy access to the main components for maintenance.
Stainless steel runners and supports easily disassembled.
Anti-corrosion bottom avoids any damage that may be caused to the cabinet by aggressive detergents employed to clean the floors.
Doors are self-closing and can be fully opened up to 180°.
Lockable door.
The rounded internal corners, the easily removable runners and grids allow for ease of cleaning and high hygiene standards.
Mounted on adjustable Stainless steel feet, with castors as an option.
Capacity:
- Number and type of grids (included): 3 - GN 2/1
Key Information:
- Net Volume: 503 lt
- Capacity: 670 lt / Bottle .75L Bordeaux
- Door hinges:
- External dimensions, Width: 740 mm
- External dimensions, Depth: 860 mm
- External dimensions, Depth with Doors Open: 1480 mm
- External dimensions, Height: 2080 mm
- Number and type of doors: 1
- Type of external material: 304 AISI
- Type of internal material: 304 AISI
- Internal panels material: 304 AISI
- Number of positions & pitch: 44; 30 mm
- Gross capacity: 670 lt
- Type of model (EU Regulation. 2015/1094): vertical frozen
Sustainability
- Refrigerant type: R290
- GWP Index: 3
- Refrigeration power: 322 W
- Refrigerant weight: 90 g

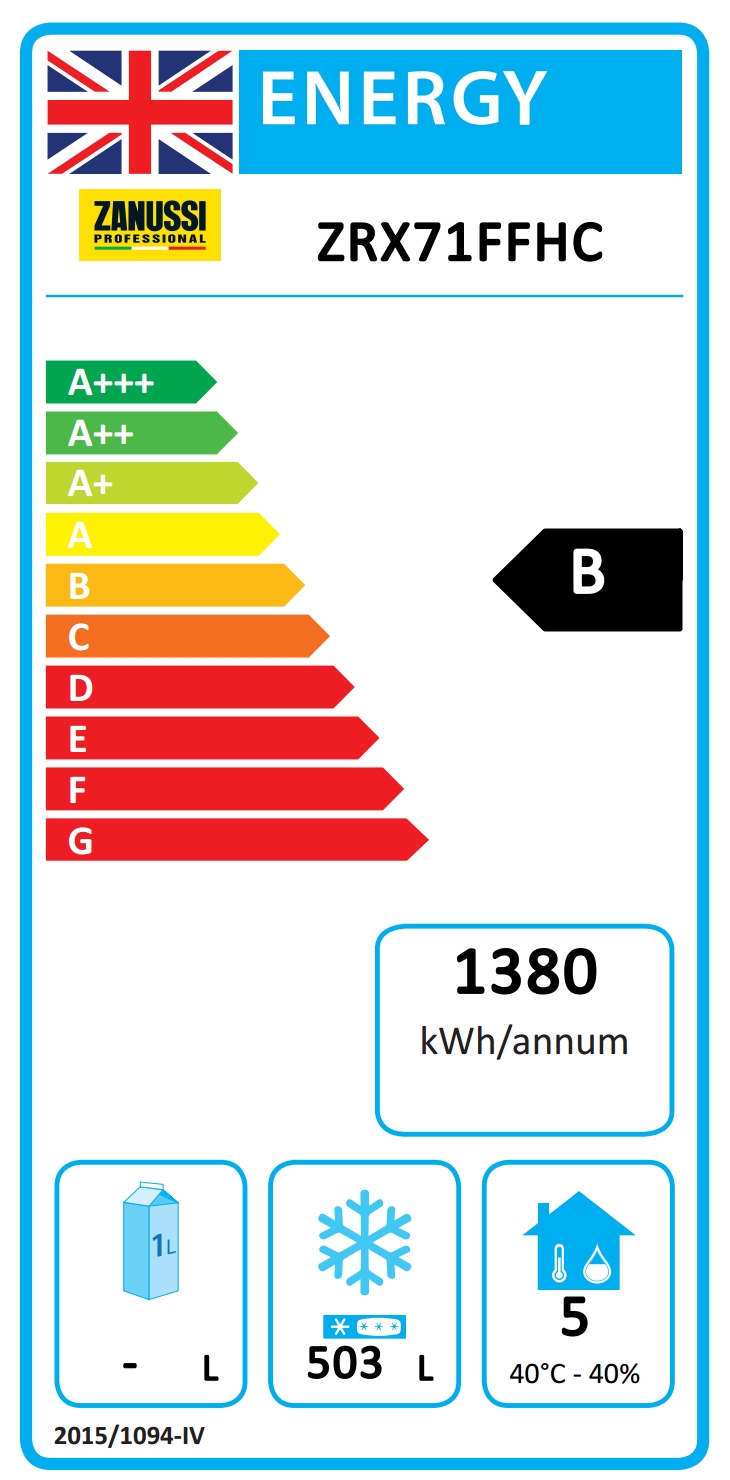

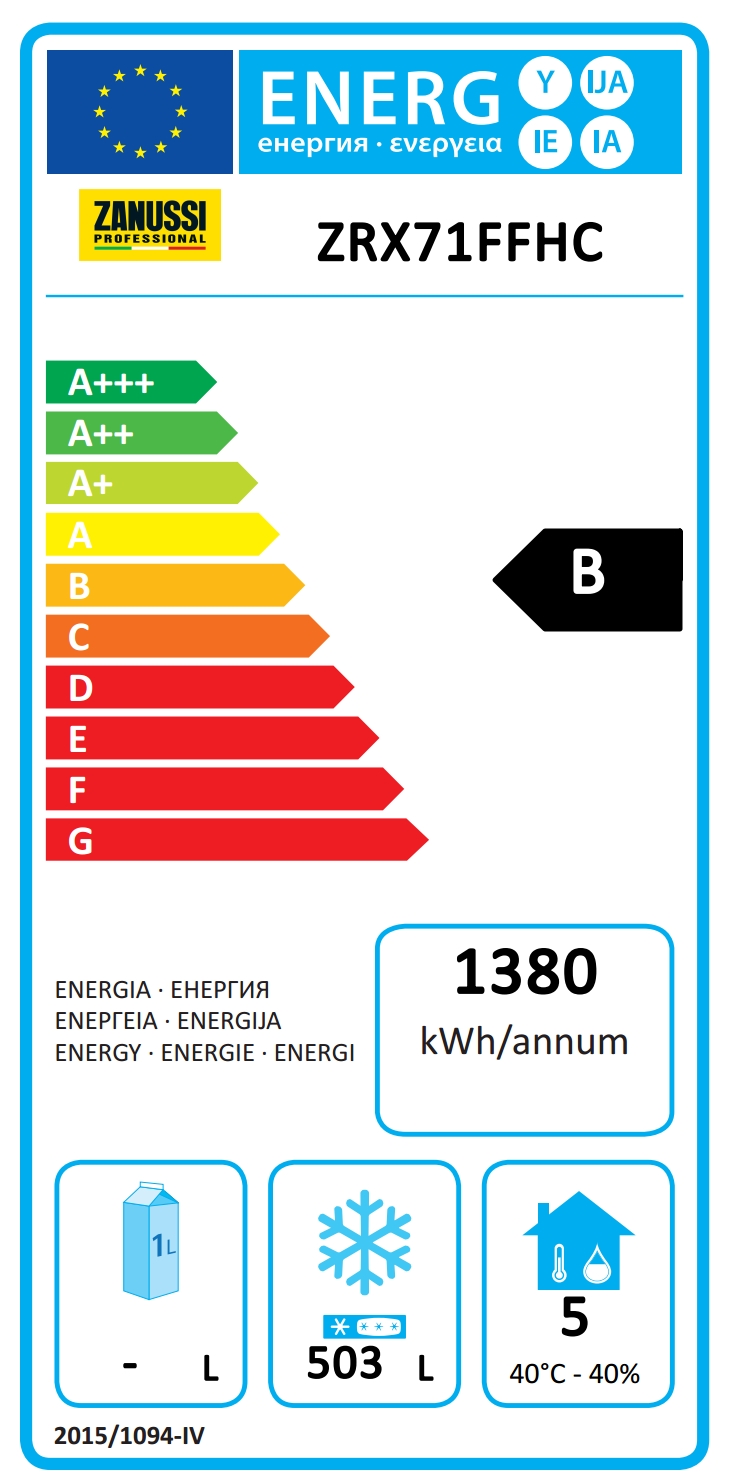

- Energy Class (EU Reg. 2015/1094): B
- Yearly and daily energy consumption (EU Reg. 2015/1094): 1380kWh/year - 4kWh/24h
- Climate class (EU Reg. 2015/1094): Heavy Duty (5)
- Energy Efficiency Index-EEI (EU Reg. 2015/1094): 34.92
Electric
- Supply voltage: 220-240 V/1 ph/50 Hz
- Electrical power, max: 0.3 kW
Refrigeration Data
- Control type: Digital
- Refrigeration power at evaporation temperature: -30 °C
- Operating temperature min.: -22 °C
- Operating temperature max.: -15 °C
- Operating mode: Ventilated
