NPT Active HP

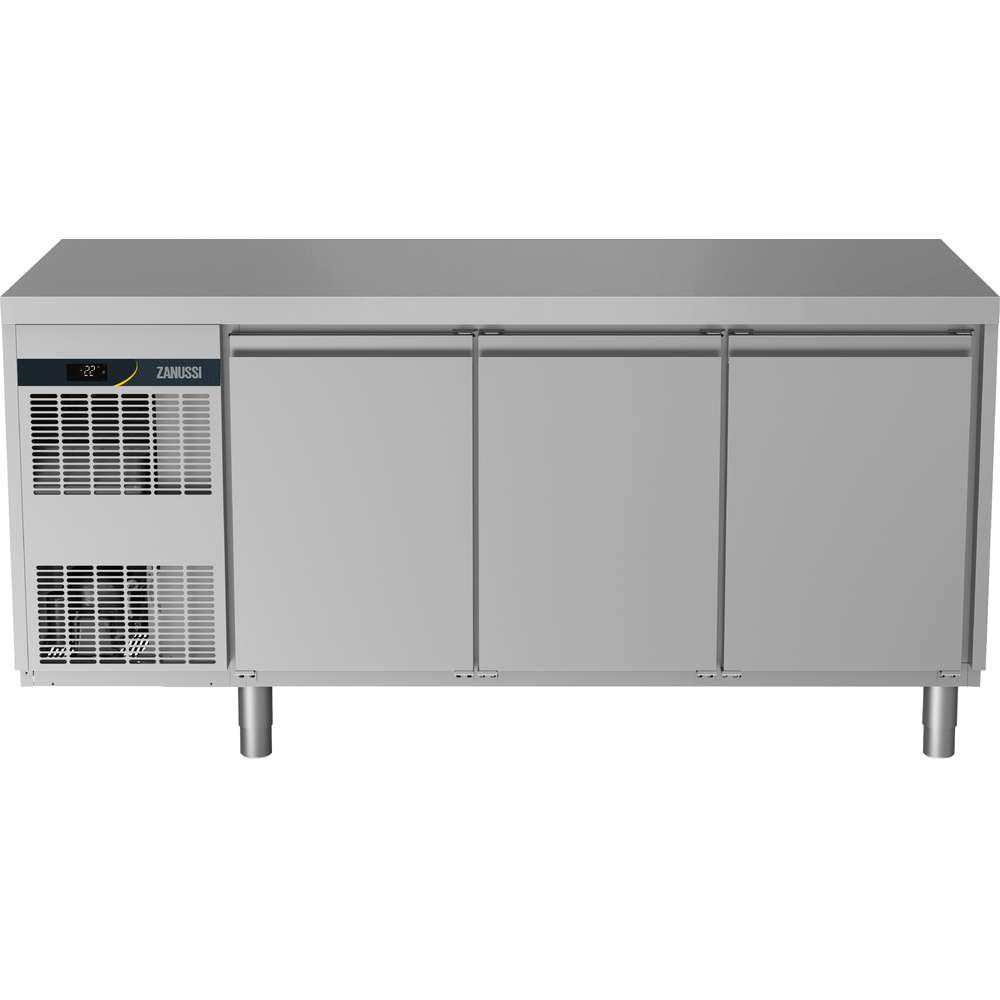

Premium Freezer Counter - 440lt, 3-Door
111071

3-door freezer counter 440lt, -22-15°C

Where to buy
  • Features
  • Specifications
  • Documents
  • Accessories
  • Main Features

  • Connectivity ready for real time access to connected appliances from remote and data monitoring (requires optional accessory).

  • Equipped with forced air circulation system for rapid cooling and temperature distribution within the cell.

  • Certified safety CE requirements.

  • Frontal and easy access to all components in the cooling unit.

  • Fully removable cooling unit to facilitate maintenance.

  • Preservation performances and temperature uniformity within the cell guaranteed at 5-HEAVY DUTY (40°C) working conditions according to EN16825:2016 test protocol.

  • Adjustable temperature range from -15°C to -22°C.

  • Hot gas automatic evaporation of defrost water.

  • Large digital white-digit display with humidity selection button (3 preset level), internal temperature display and setting, manual activation of defrost cycle and turbo frost cycle (to rapidly cool warm loads).

  • Zanussi Professional Fridge Control APP make the life easier for our customers: ​- Monitor safety of preservation process thanks to HACCP data & alarms for precise control​​- Save time and easy data management having the possibility to send the HACCP information in excel format directly to e-mail address​- Quick operations:​ set the cabinet temperature/turbocooling​ and set date/hour

  • Large digital white-digit display with cabinet temperature display and setting. Bluetooth technology included allows to keep HACCP historical data and download them through the app.

  • 0mm clearance installation space: tower configuration cooling unit guarantee performance with frontal ventilation only; this unique solution allows installation against the wall or side by side with other appliances, even on the cooling unit side to maximize the use of kitchen space.

  • Combination of doors and drawers to suit any configuration needed, with the possibility to change the configuration on site. Right cooling unit available on request.

  • Fully compliant HACCP digital control: when temperature exceeds critical limits, acoustic and visual alarms are activated. Up to two months of event are kept in memory.

  • Tropicalized unit.

  • Anti-tilt runners accept GN 1/1 containers.

  • Self closing stainless steel doors (< 90°).

  • Prearranged to fit RS485 port to facilitate connection to a remote computer and integrated HACCP systems.

  • Sustainability

  • CFC and HCFC free, highly ecological refrigerant type: R290 (ecological gas in foam: cyclopentane). Hydrocarbon refrigerant gas R290 for the lowest environmental impact (GWP=3), to reduce green house and ozone depletion effects.

  • ACTIVE DEFROST - fully automatic defrost starts only when ice is actually building-up in the evaporator and adapts the defrosting duration to guarantee perfect ice removal while optimizing energy efficiency consumption.

  • Fitted with 90 mm thickness of cyclopentane insulation for best insulating performance (thermal conductivity: 0,020 W/m*K) and lowest environmental impact (GWP=3).

  • Hydrocarbon refrigerant gas R290 for the lowest environmental impact (GWP=3) - CFC and HCFC free.

  • Removable triple-chamber balloon magnetic gasket to improve insulation and reduce energy consumption and ease of cleaning.

  • Construction

  • 3 compartments with 3 doors.

  • Developed and produced in ISO 9001 and ISO 14001 certified factory.

  • Interior base with rounded corners, pressed from a single sheet.

  • Internal structure with 15 charging positions (3 cm pitch) available to host GN 1/1 grids, ensuring higher net capacity and a greater storage space.

  • Ease of cleaning and high hygiene standards thanks to the rounded internal corners, the easily removable runners, grids and air conveyors.

  • Built-in refrigeration unit.

  • Worktop in AISI 304 Stainless steel with a 50 mm profile.

  • If needed, working top can be removed for easier handling during installation (in case of narrow doors).

  • Anti-drip profile on stainless steel worktop edge.

  • Internal and external doors, front and side panels and removable worktop in AISI 304 Stainless steel.

  • Mounted on stainless steel feet to give 150 mm (-5/+50 mm) clearance for ease of cleaning the floor.

  • External bottom panel in stainless steel.

  • External back panel in galvanized steel.

  • Fault code display.

Electric
  • Supply voltage: 220-240 V/1 ph/50 Hz
  • Electrical power, max: 0.49 kW
  • Defrost Power: 0.57 kW
  • Plug type: CE-SCHUKO
Refrigeration Data
  • Control type: Digital
  • Refrigeration power at evaporation temperature: -30 °C
  • Min/Max internal humidity:
  • Operating temperature min.: -15 °C
  • Operating temperature max.: -22 °C
  • Compressor power: 3/4 hp
  • Operating mode: Ventilated
Key Information:
  • Net Volume: 310 lt
  • Door hinges:
  • External dimensions, Width: 1799 mm
  • External dimensions, Depth: 700 mm
  • External dimensions, Height: 900 mm
  • Internal Dimensions, Width: 1252 mm
  • Internal Dimensions, Depth: 560 mm
  • Internal Dimensions, Height: 550 mm
  • Net weight: 120 kg
  • Shipping volume: 1.5 m³
  • Depth with doors open: 1110 mm
  • Height adjustment: -5/50 mm
  • Gross capacity: 440 lt
Sustainability
  • Current consumption: 3.3 Amps
  • Refrigerant type: R290
  • GWP Index: 3
  • Refrigeration power: 569 W
  • Refrigerant weight: 145 g
  • Energy Class (EU Reg. 2015/1094): D
  • Yearly and daily energy consumption (EU Reg. 2015/1094): 2242kWh/year - 6kWh/24h
  • Climate class (EU Reg. 2015/1094): Heavy Duty (5)
  • Energy Efficiency Index-EEI (EU Reg. 2015/1094): 53,50
Data Sheet
Energy Label
(317,53 KB)
(277,73 KB)
BIM/Revit
(1,45 MB)
Included Accessories
Quantity
Code
Description
Quantity: 3
Code: 881109
Kit 1/1 grey rilsan grid and 2 side runners for refrigerated counters
