Blast Chiller Freezers Crosswise

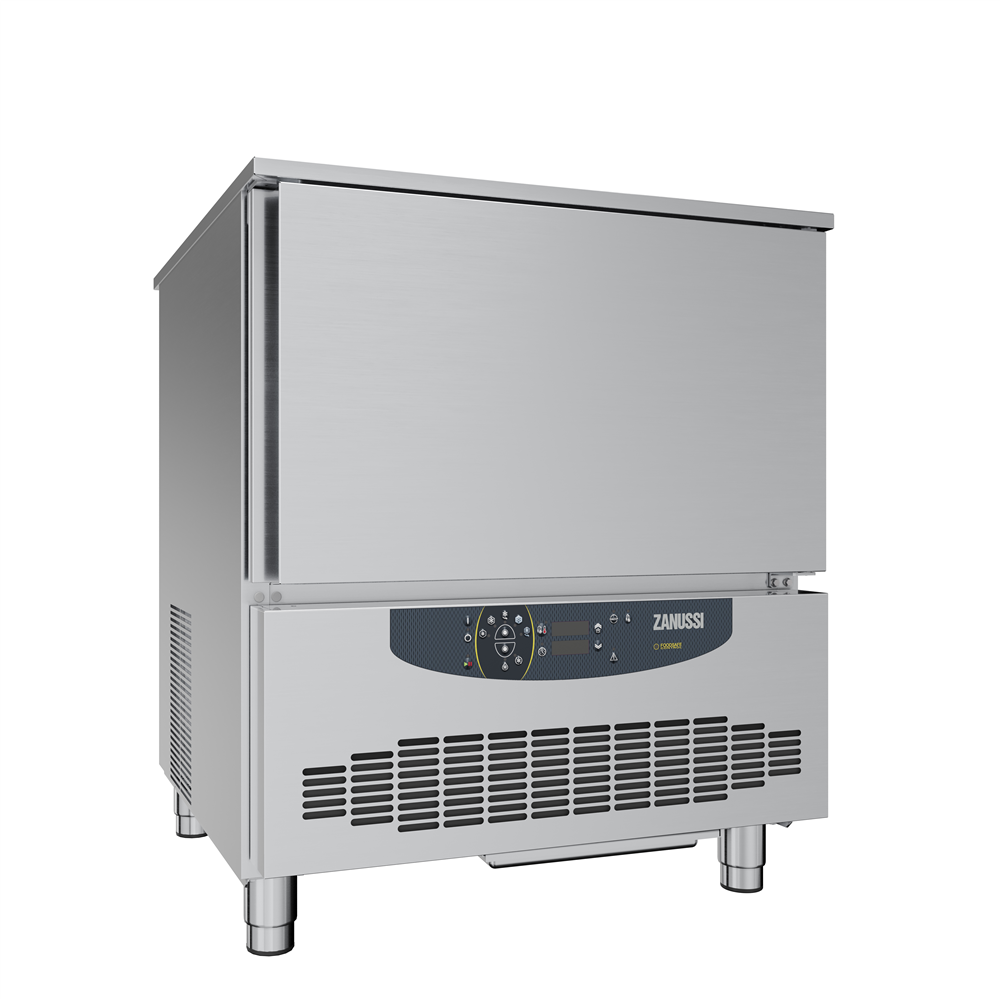

Blast Chiller-Freezer Crosswise - 25 kg 5GN 1/1 (R290)
111351

Blast chiller & freezer crosswise 25kg, compatible with 6x1/1GN convection oven crosswise - R290

Where to buy
  • Features
  • Specifications
  • Documents
  • Accessories
  • Blast Chilling cycle: 25 kg from 90°C up to 3°C.

  • Freezing cycle: 15 kg from 90°C up to -36°C.

  • Holding at +3 °C for chilling or -20 °C for freezing, automatically activated at the end of each cycle, to save energy and maintain the target temperature (manual activation is also possible).

  • Chilling cycle with automatic preset cycles:- Soft Chilling, ideal for delicate food and small portions.- Hard Chilling, ideal for solid food and whole pieces.

  • Freezing cycle with automatic preset cycles, ideal for all kind of food (raw, half or fully cooked).

  • Turbo cooling: chiller works continuously at the desired temperature; ideal for continuous production.

  • Thawing cycle, ideal for defrosting food in a controlled and safe environment.

  • Multi-purpose internal structure suitable for gastronorm, bakery trays or ice-cream basins.

  • 3-point core probe available on request (optional).

  • Possibility to modify the cavity temperature in turbo cooling and thawing cycles.

  • Remaining time estimation for probe-driven cycles based on artificial intelligence techniques (ARTE) for an easier planning of the activities.

  • Single sensor core probe as standard.

  • On-board HACCP monitoring capable.

  • Performance guaranteed at ambient temperatures of +40°C (Climatic class 5).

  • Automatic and manual defrosting.

  • IP21 protection index.

  • No water connections required.

  • Ventilator swinging hinged panel for access to the evaporator for cleaning.

  • Waste water can be plumbed into drain, but can also be collected in an optional waste container.

  • Built-in refrigeration unit.

  • Main components in 304 AISI stainless steel.

  • Evaporator with antirust protection.

  • Automatic heated door frame.

  • Door reversible on site.

  • Door stopper to keep the door open in order to avoid the formation of bad smells (kit available to be mounted on site, depending on preferred door hinge).

Electric
  • Circuit breaker required
  • Supply voltage: 220-240 V/1 ph/50 Hz
  • Electrical power, max: 1.5 kW
Capacity:
  • Number and type of grids: 5 (GN 1/1; 600x400)
  • Number and type of basins: 4 (360x250x80h)
Product Information (EN17032 – Commission Regulation EU 2015/1095)
  • Chilling Cycle Time (+65°C to +10°C): 93 min
  • Full load capacity (chilling): 25 kg
  • Freezing Cycle Time (+65°C to -18°C): 243 min
  • Full load capacity (freezing): 15 kg
  • Test performed in a test room at 30°C to chill/ freeze (+10°C/-18° C) a full load of 40mm deep trays filled with mashed potatoes evenly distributed up to a height of 35 mm at starting temperature between 65° and 80°C within 120/270min.
Sustainability
  • Refrigerant type: R290
  • GWP Index: 3
  • Refrigeration power: 2488 W
  • Refrigerant weight: 130 g
  • Energy consumption, cycle (chilling): 0.0825 kWh/kg
  • Energy consumption, cycle (freezing): 0.291 kWh/kg
Installation:
  • Clearance: 5 cm on sides and back.
  • Please see and follow detailed installation instructions provided with the unit
Key Information:
  • External dimensions, Width: 762 mm
  • External dimensions, Depth: 760 mm
  • External dimensions, Height: 902 mm
  • Net weight: 85 kg
  • Shipping weight: 97 kg
  • Shipping volume: 0.72 m³
Refrigeration Data
  • Refrigeration power at evaporation temperature: -10 °C
  • Operating temperature min.: -36 °C
  • Operating temperature max.: 90 °C
  • Condenser cooling type: AIR
Brochures
CAD Drawings
(293,25 KB)
Data Sheet
Leaflets
BIM/Revit
(1,13 MB)
Included Accessories
Quantity
Code
Description
Quantity: 1
Code: 880213
1 single-sensor probe for blast chiller/freezers
Quantity: 1
Code: 881295
Kit 4 feet for blast chiller/freezers crosswise 15-25 kg - h100mm
