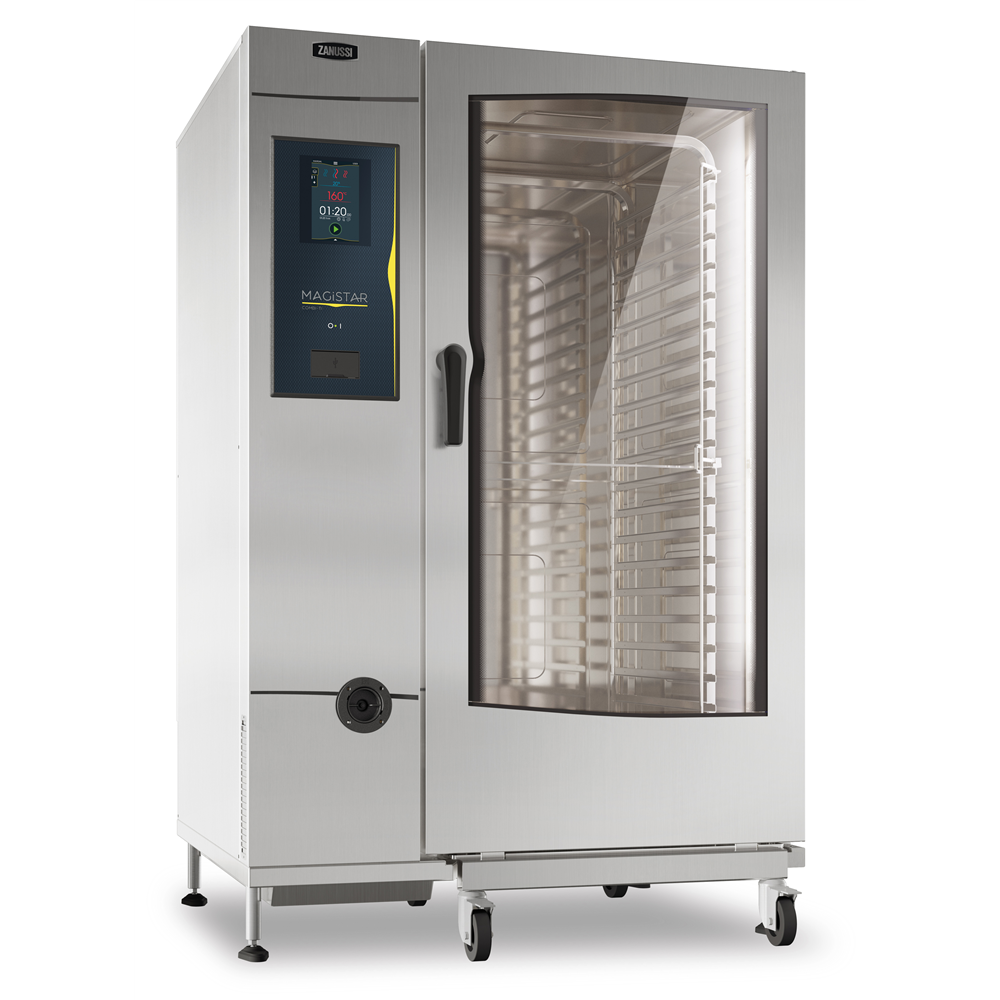

Magistar Combi TI combi boilerless oven with touch screen control, 20x2/1GN, gas, 2 cooking modes (recipe program, manual), automatic cleaning, LPG
- Features
- Specifications
- Documents
- Accessories
-
2 different chemical options available: solid and liquid (requires optional accessory).
-
Capacity: 20 GN 2/1 or 40 GN 1/1 trays.
-
Boilerless steaming function to add and retain moisture for high quality, consistent cooking results.
-
Dry hot convection cycle (max 300 °C) ideal for low humidity cooking. Automatic moistener (11 settings) for boiler-less steam generation.
-
EcoDelta cooking: cooking with food probe maintaining preset temperature difference between the core of the food and the cooking chamber.
-
Programs mode: a maximum of 1000 recipes can be stored in the oven's memory, to recreate the exact same recipe at any time. The recipes can be group in 16 different categories to better organize the menu. 16-step cooking programs also available.
-
MultiTimer function to manage up to 20 different cooking cycles at the same time, improving flexibility and ensuring excellent cooking results. Can be saved up to 200 MultiTimer programs.
-
OptiFlow air distribution system to achieve maximum performance in chilling/heating eveness and temperature control thanks to a special design of the chamber.
-
AirFlow air distribution system to achieve maximum performance in chilling/heating evenness and temperature control thanks to a special design of the chamber combined with high precision variable speed fan.
-
Fan with 7 speed levels from 300 to 1500 RPM and reverse rotation for optimal evenness. Fan stops in less than 5 seconds when door is opened.
-
Single sensor core temperature probe included.
-
Automatic fast cool down and pre-heat function.
-
Back-up mode with self-diagnosis is automatically activated if a failure occurs to avoid downtime.
-
Integrated door shield to avoid steam and heat dispersion from the door, when the roll-in rack is not used.
-
Double thermo-glazed door with open frame construction, for cool outside door panel. Swing hinged easy-release inner glass on door for easy cleaning.
-
Hygienic internal chamber with all rounded corners for easy cleaning.
-
304 AISI stainless steel construction throughout.
-
Front access to control board for easy service.
-
IPX 5 spray water protection certification for easy cleaning.
-
Supplied with n.1 trolley rack 2/1 GN, 63 mm pitch.
Electric
- Circuit breaker required
- Supply voltage: 220-240 V/1 ph/50 Hz
- Electrical power, max: 2.5 kW
- Electrical power, default: 2.5 kW
Capacity:
- Trays type: 20 (GN 2/1)
- Max load capacity: 200 kg
Key Information:
- Door hinges: Right Side
- External dimensions, Width: 1162 mm
- External dimensions, Depth: 1066 mm
- External dimensions, Height: 1794 mm
- Weight: 335 kg
- Net weight: 335 kg
- Shipping weight: 373 kg
- Shipping volume: 2.77 m³
Installation:
- Clearance: Clearance: 5 cm rear and right hand sides.
- Suggested clearance for service access: 50 cm left hand side.
Gas
- Total thermal load: 238630 BTU (70 kW)
- Gas Power: 70 kW
- Standard gas delivery: LPG, G31
- ISO 7/1 gas connection diameter: 1" MNPT
Water:
- Inlet water temperature, max: 30 °C
- Inlet water pipe size (CWI1, CWI2): 3/4"
- Pressure, min-max: 1-6 bar
- Chlorides: <10 ppm
- Conductivity: >50 µS/cm
- Drain "D": 50mm
Brochures
Range overviews
CAD Drawings
Data Sheet
Recipe Guide
BIM/Revit
Included Accessories
