Warewashing
Remote pre-wash zone, dishwasher driven, Right > Left
510503

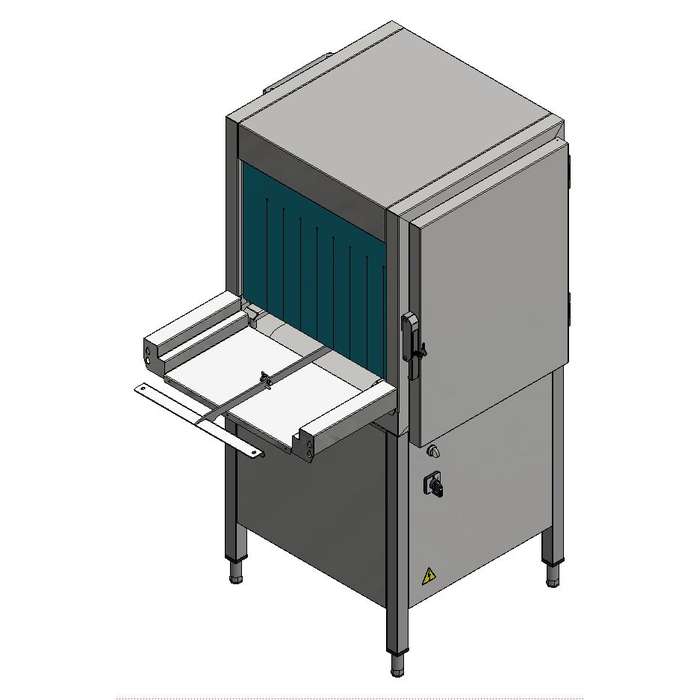

Remote prewash module, machine driven - right to left

Where to buy
  • Features
  • Specifications
  • Documents
  • Adjustable feet for full access underneath the machine for cleaning.

  • Pre-wash section uses cold water so food remains are not "baked" onto the plates in order to have better pre-wash performance.

  • Separated pre-wash module reduces the risk of foaming in the rack type dishwasher.

  • The baskets pass automatically through the prewash machine with a dishwasher driven table.

  • The remote installation as a part of the handling system outside of the rack type dishwasher to optimize the dishwashing layout without affecting the performance.

  • Full accessibility to the interior of the module and all internal components can be easily removed for cleaning thanks to the hinged door.

  • Unit has separate operation control while power and signal connection can be taken from the rack type.

  • Deep drawn pressed tank with fully rounded corners, sloped towards the drain to prevent dirt build-up, provides fast drainage in just a few minutes. With no welding points the pressed tank offers a guaranteed water tight solution.

  • Designed to be connected with Electrolux Professional green&clean rack type dishwasher and non-motorized handling system.

  • The unit is installed as part of the non-motorized handling system and fully operates in synchronization with the rack type dishwasher.

  • Door is insulated with injected foam. This adds strength as well as reduces noise and heat loss.

  • Curtains equipped in both entrance and exit avoid water splashing out.

  • All main components made in heavy duty anti-corrosive 304 type stainless steel: internal chamber, external, front and side panels, pre-wash arms and door.

Key Information:
  • Height with door open: 1450 mm
  • Charging hole size (width): 530 mm
  • External dimensions, Width: 600 mm
  • External dimensions, Depth: 726 mm
  • External dimensions, Height: 1450 mm
  • Charging hole size (height): 465 mm
  • Net weight: 93 kg
  • Shipping weight: 110 kg
  • Shipping height: 1650 mm
  • Shipping width: 800 mm
  • Shipping depth: 650 mm
  • Shipping volume: 0.86 m³
  • Pre-wash temperature: 30 - 50 °C
Sustainability
  • Noise level: <70 dBA
Electric
  • Supply voltage: 220-230 V/1N ph/50 Hz
  • Default Installed Power: 0.9 kW
  • Pre-wash pump size: 0.73 kW
