Handling System for Dishwasher

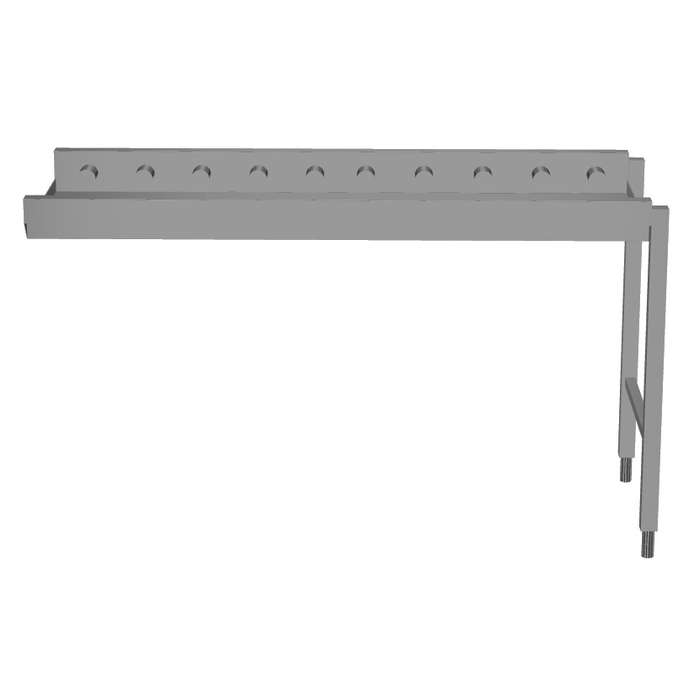

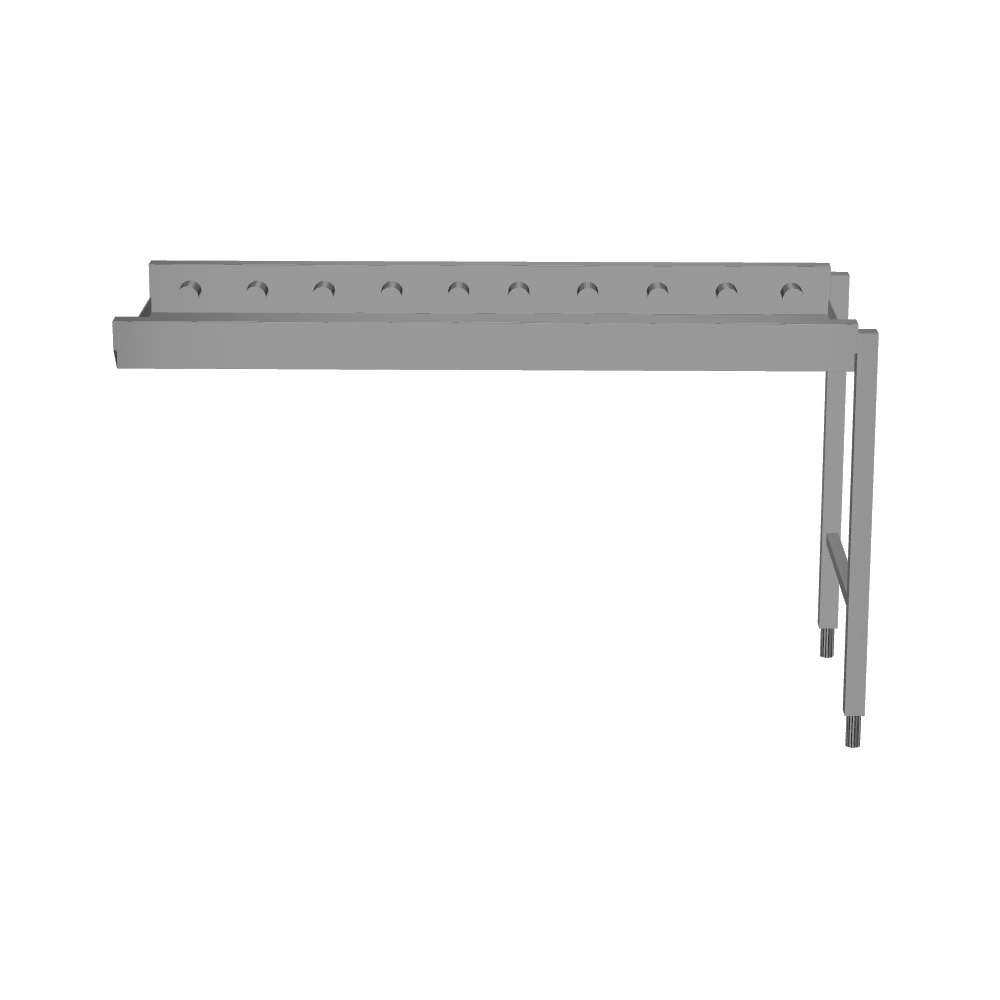

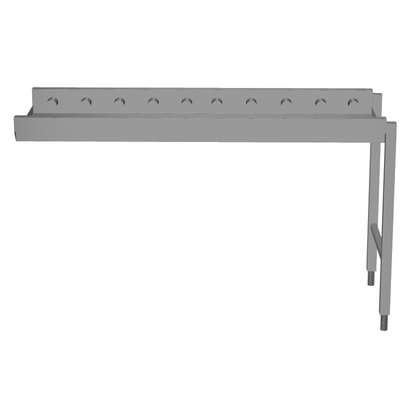

Short roller conveyors
- Features
- Specifications
- Documents
Main Features
The table is suitable for both rack type and hood type dishwasher. Rack type dishwasher can be connected directly to the table, while there are optional accessories to adapt the table with hood type dishwasher.
Suitable to install either a single unit with dishwasher or combined with other tables.
The table can be used in loading and/or unloading sides.
Conveyors supplied as knockdown and easy to assemble.
"Key holes" and "snap on" system reduces the number of screws needed for fast and easy installation.
Improved end limit switch for easier cleaning and higher reliability.
Manual rack movement with short rollers.
Drain can be turned 360°.
Designed to transport 500x500 mm dishwashing baskets.
Sustainability
The short roller conveyor is available in 600mm length and from 1100mm up to 2600mm with 100mm-step length.
Construction
Two legs included.
Stainless steel feet 50 mm adjustable in height to align the operation height between the dishwasher and table.
Thick welded flanges for sturdy connection between the units.
All surfaces smooth with polished finish.
40x40 mm square tubular legs in AISI 304 stainless steel.
AISI 304 1,2mm stainless steel basin.
Self-bearing undershelf eliminates the need for additional frames.
Conveyors optionally equipped with end-limit switch, end plate, guides for racks, and undershelves.
Sloping bottom of the table grants a smooth and rapid drainage.
Key Information:
- External dimensions, Width: 1500 mm
- External dimensions, Depth: 620 mm
- External dimensions, Height: 910 mm
- Net weight: 19 kg
- Height adjustment: 50/50 mm
- Basin material: Stainless Steel AISI 304 - EN 1.4301
- Type of rollers: Short
