Handling System for Rack Type

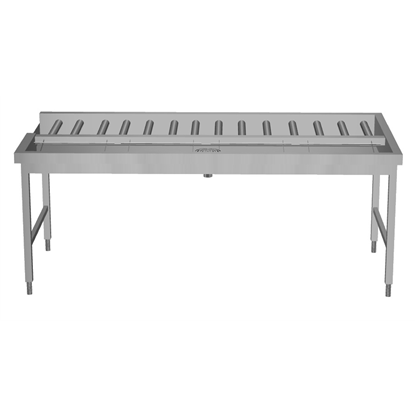

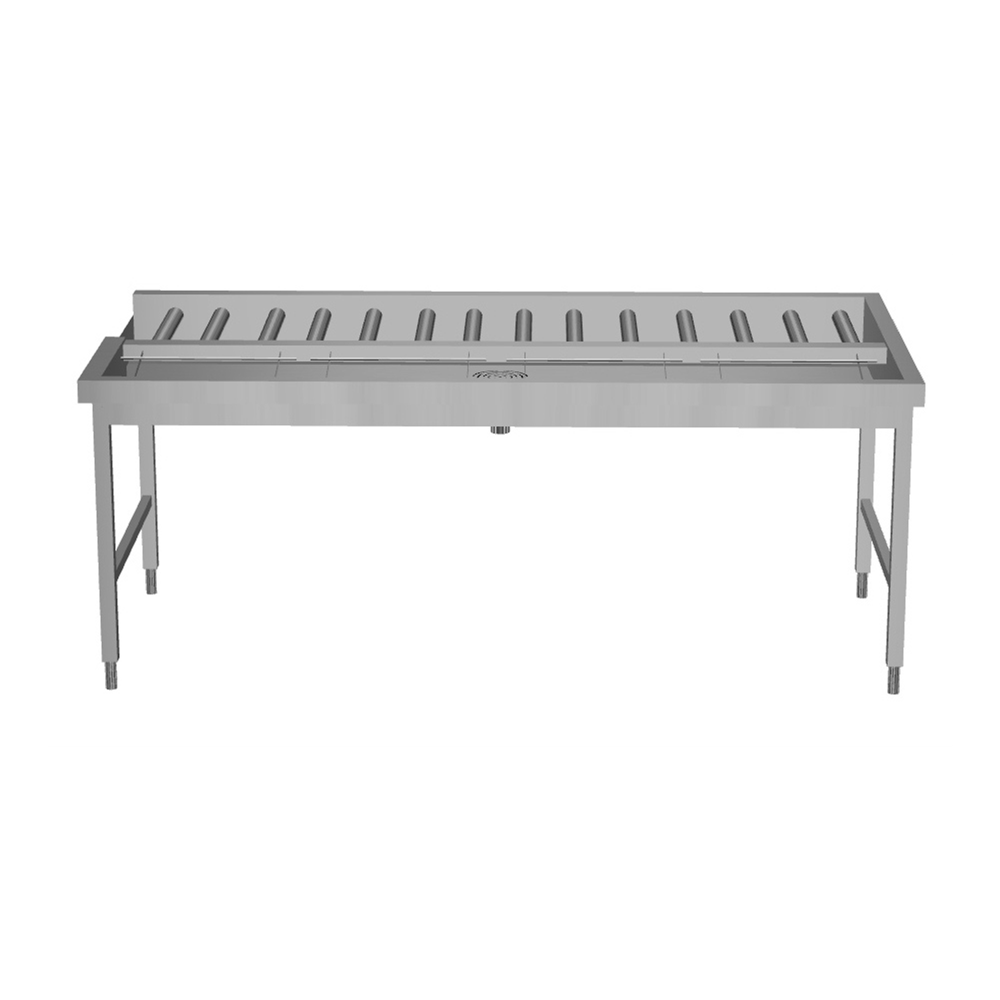

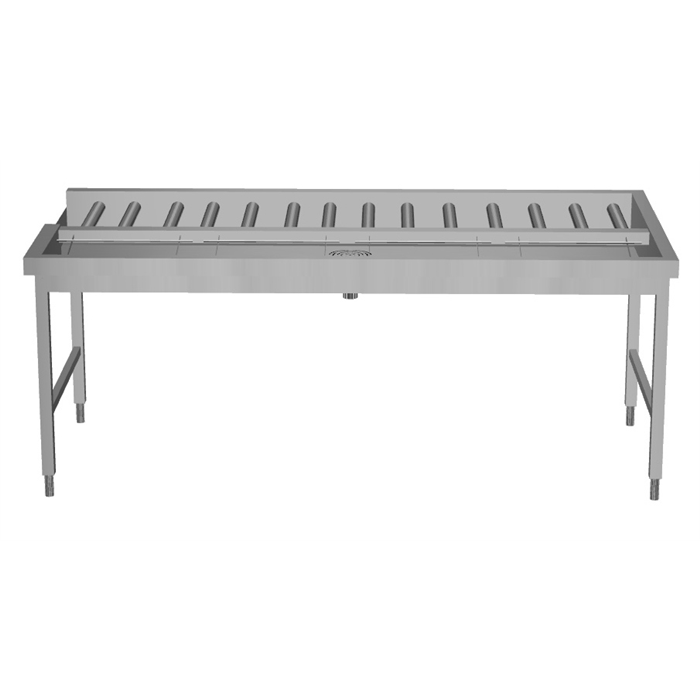

Manual Sorting Table, 4 Baskets - Right to Left, 2130mm - Side Connection
- Features
- Specifications
- Documents
-
Manual sorting table with side loading can be connected either to a rack type dishwasher or after the roller conveyor, a 90° dishwasher driven curve and a side loader on the loading side.
-
Designed to transport 500x500 mm dishwashing baskets.
-
Long rollers and strainer box easy to remove.
-
"Key holes" and "snap on" system reduces the number of screws needed for fast and easy installation.
-
Manual racks handling toward the dishwasher made easier thanks to the long rollers.
-
Stainless steel feet 50 mm adjustable in height to align the operation height between the dishwasher and table.
-
Optionally equipped with tray slides, a single adjustable over-shelf for empty baskets, a double adjustable over-shelf for sorting of baskets and empty baskets, spray guns, cutlery soaking basin and basin wash nozzles.
-
All surfaces smooth with polished finish.
-
Sloping bottom of the table grants a smooth and rapid drainage.
-
Constructed in AISI 304 stainless steel with square 40x40mm legs.
-
Stainless steel strainer baskets easy to remove.
-
Connection from side.
-
Thick welded flanges for sturdy connection between the units.
-
Manual receiving and sorting operations.
Key Information:
- External dimensions, Width: 2130 mm
- External dimensions, Depth: 1110 mm
- External dimensions, Height: 910 mm
- Net weight: 52 kg
- Height adjustment: 50/50 mm
- Basket movement: Right to left
- Basin material: Stainless Steel AISI 304 - EN 1.4301
- Type of rollers: Long
