Handling System for Dishwasher

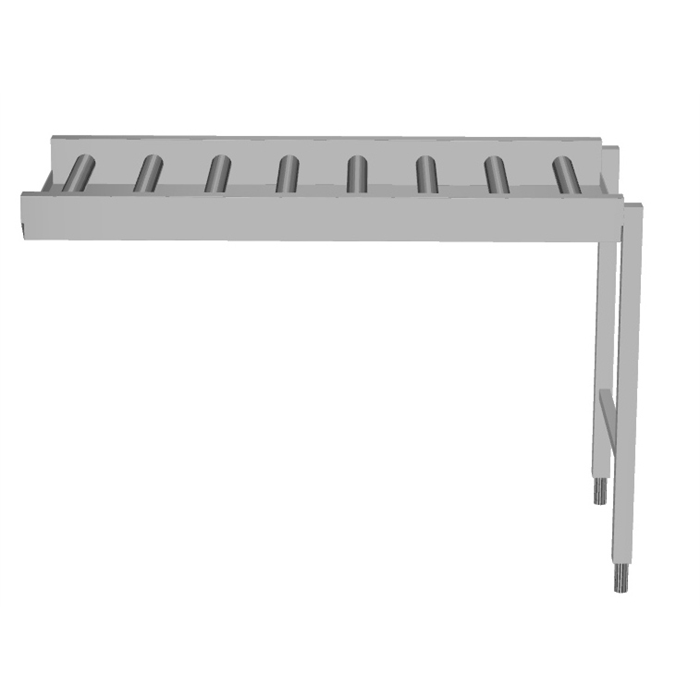

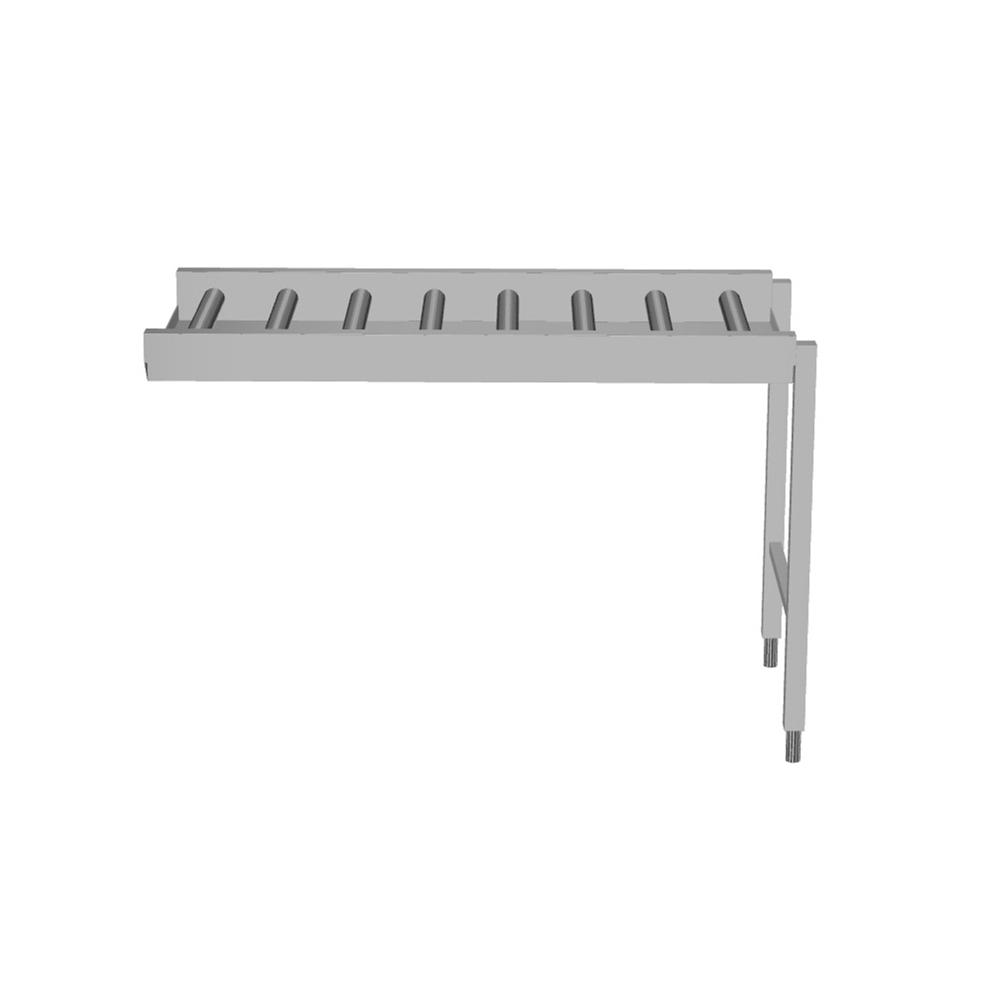

Conveyor, long rollers
- Features
- Specifications
- Documents
-
Manual rack movement with long rollers.
-
The table can be used in loading and/or unloading sides.
-
Suitable to install either a single unit with dishwasher or combined with other tables.
-
The table is suitable for both rack type and hood type dishwasher. Rack type dishwasher can be connected directly to the table, while there are optional accessories to adapt the table with hood type dishwasher.
-
Conveyors supplied as knockdown and easy to assemble.
-
"Key holes" and "snap on" system reduces the number of screws needed for fast and easy installation.
-
Drain can be turned 360°.
-
Improved end limit switch for easier cleaning and higher reliability.
-
Designed to transport 500x500 mm dishwashing baskets.
-
Conveyors optionally equipped with end-limit switch, end plate, guides for racks, and undershelves.
-
Stainless steel feet 50 mm adjustable in height to align the operation height between the dishwasher and table.
-
Thick welded flanges for sturdy connection between the units.
-
Two legs included.
-
Self-bearing undershelf eliminates the need for additional frames.
-
AISI 304 1,2mm stainless steel basin.
-
40x40mm stainless steel tubular and square legs.
-
Sloping bottom of the table grants a smooth and rapid drainage.
-
All surfaces smooth with polished finish.
-
Plastic rollers easy to remove for cleaning.
Key Information:
- External dimensions, Width: 1300 mm
- External dimensions, Depth: 620 mm
- External dimensions, Height: 910 mm
- Net weight: 19 kg
- Height adjustment: 50/50 mm
- Basin material: Stainless Steel AISI 304 - EN 1.4301
- Type of rollers: Long
