Handling System

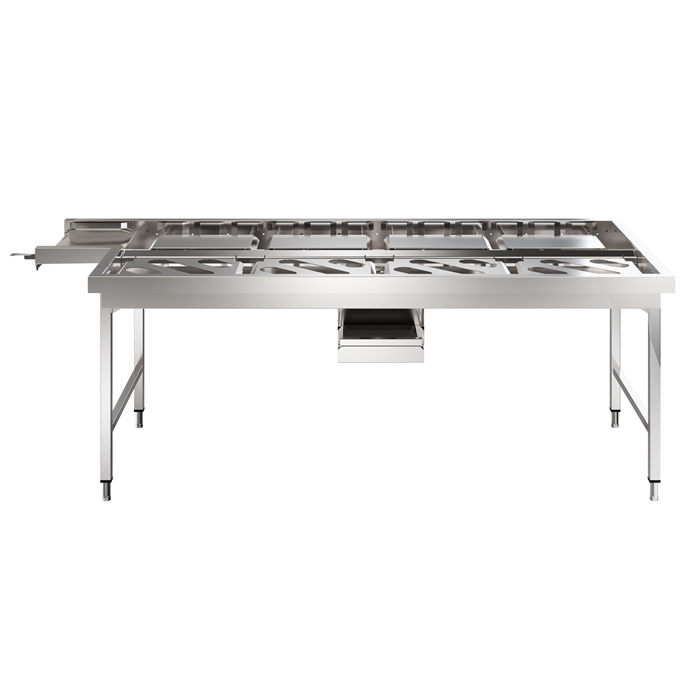

Automatic Sorting Table, Dishwashing Driven with 4 Baskets - Right to Left, 2130mm
- Features
- Specifications
- Documents
-
Designed to transport 500x500 mm dishwashing baskets.
-
"Key holes" and "snap on" system reduces the number of screws needed for fast and easy installation.
-
Driven by the dishwasher.
-
Stacking tables for 7 and 8 baskets on request.
-
Optional extras: basin wash nozzles for cleaning the basin.
-
Thick welded flanges for sturdy connection between the units.
-
Double filter strainer installed on both sides allow the access from both directions.
-
Double stainless steel strainer basket for easy operation.
-
All surfaces smooth with polished finish.
-
Sloping bottom of the table grants a smooth and rapid drainage.
-
Constructed in AISI 304 stainless steel with square 40x40mm tubular construction feet and legs.
-
Stainless steel strainer baskets easy to remove.
-
Rack-guides inclined towards the basin.
Key Information:
- External dimensions, Width: 2430 mm
- External dimensions, Depth: 1110 mm
- External dimensions, Height: 910 mm
- Net weight: 52 kg
- Height adjustment: 50/50 mm
- Basket movement: Right to left
- Position to dishwasher: Loading
- Basin material: Stainless Steel AISI 304 - EN 1.4301
