Handling System for Rack Type

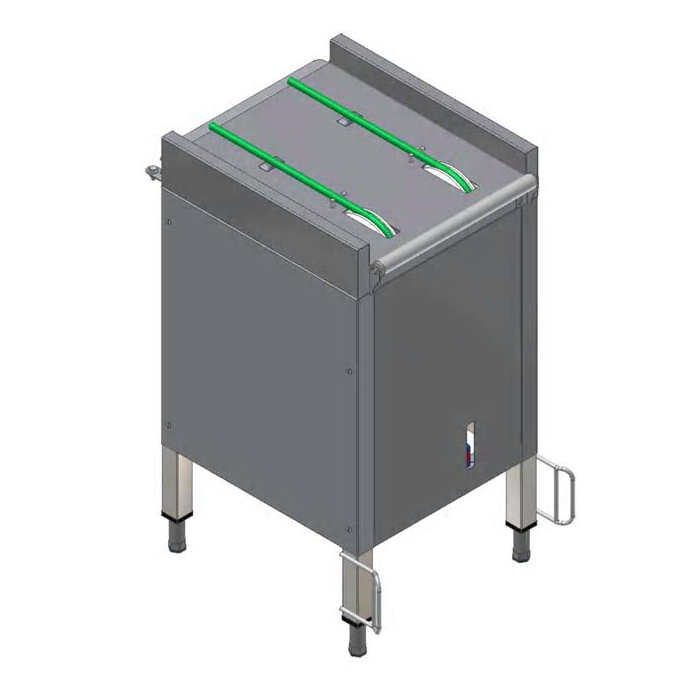

Drive Unit with Legs, Tray Unload and Cord Conveyor
- Features
- Specifications
- Documents
-
Range allows a large number of conveyor combinations.
-
Hidden screws eliminate dirt traps.
-
Frontal access for easy maintenance.
-
Frame integrated motor for easier cleaning of floor.
-
Conveyor speed controlled 4 to 15 m/min depending on capacity.
-
Available as optional accessory a remote easy-to reach emergency-stop buttons fitted where required.
-
Straight Drive Unit sustain up to 20 m; with each additional 90° curve the capability decreases by 4 m. For longer distances Central Units are needed.
-
304 AISI stainless steel construction throughout.
-
Free-standing construction delivered with 40x40mm legs.
-
Thick welded flanges for sturdy connection between the units.
-
For trays up to 375x530mm.
-
All surfaces smooth with polished finish.
-
Stainless steel square 40x40mm tubular legs.
-
Fiber glass reinforcement with 15mm polyurethane cord.
-
Main electrical controls protected in a water-resistant electrical cabinet.
-
Optional step by step loading for maximum accumulation of trays on the conveyor.
Electric
- Supply voltage: 230 V/1N ph/50/60 Hz
- Electrical power, max: 0.75 kW
Key Information:
- External dimensions, Width: 500 mm
- External dimensions, Depth: 460 mm
- External dimensions, Height: 910 mm
- Net weight: 49 kg
- Basin material: Stainless Steel AISI 304 - EN 1.4301
- Feeding motors number: 1
- Number of speeds: Variable
- Max. speed: 15 m/min
- Min. speed - m/min: 7 m/min
