Modular Cooking Range Line

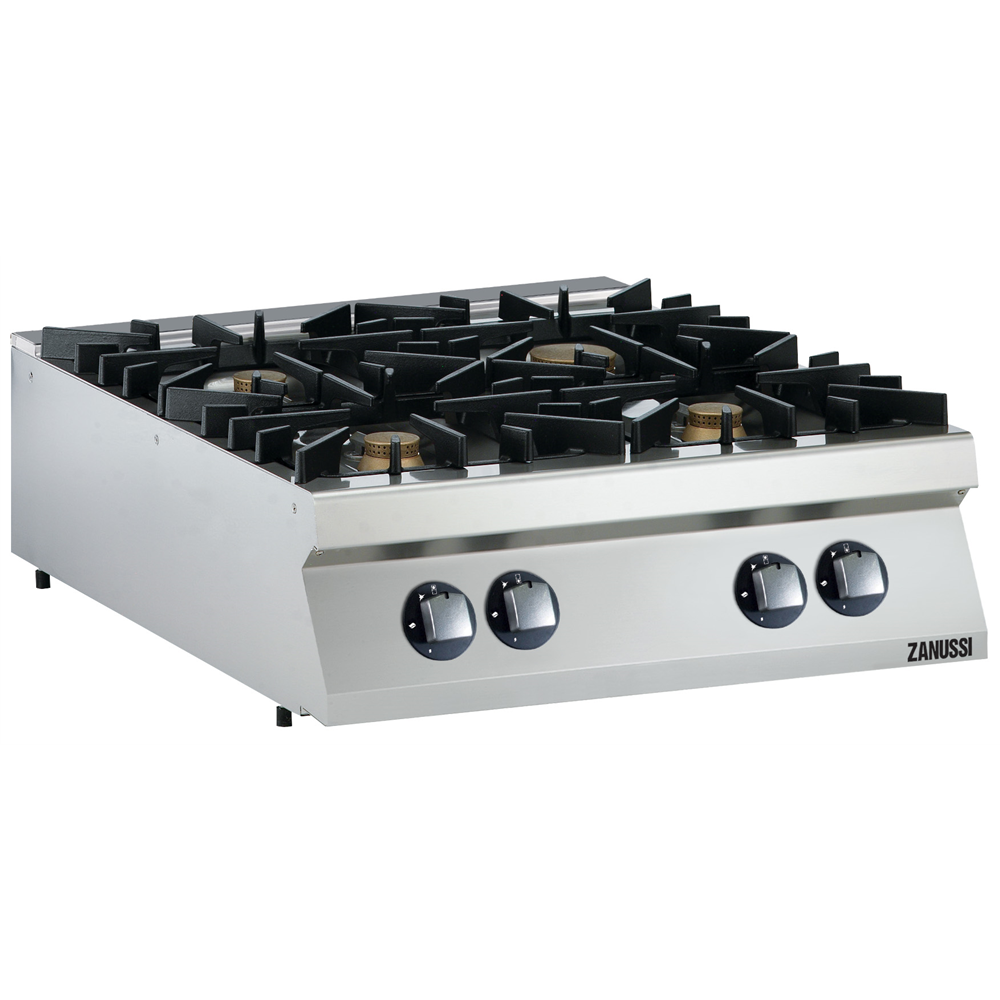

EVO900 4-Burner Gas Boiling Top - Town Gas
- Features
- Specifications
- Documents
-
Suitable for countertop installation.
-
Unit to be mounted on open base cupboards, bridging supports or cantilever systems.
-
The three 5.5 kW and one 7.5 kW high efficiency burners are available in two different sizes to suit high performing cooking requirements of the most demanding customers.
• 5.5 kW burner with 60 mm diameter
• 7.5 kW burner with 100 mm diameter -
Gas appliance supplied for use with town gas.
-
Large sized pan support in cast iron (stainless steel as option) with long center fins to allow the use of the largest down to the smallest pans.
-
Burners with optimized combustion.
-
Flame failure device on each burner protects against gas leakage when accidental extinguishing of the flame occurs.
-
Protected pilot light.
-
The special design of the control knob system guarantees against water infiltration.
-
IPX5 water protection.
-
Pan supports in stainless steel.
-
Unit is 900mm deep to give a larger working surface area.
-
All exterior panels in Stainless Steel with Scotch Brite finishing.
-
AISI 304 stainless steel worktop, 2mm thick.
-
Model has right-angled side edges to allow flush fitting joints between units, eliminating gaps and possible dirt traps.
Gas
- Natural gas - Pressure: 7" w.c. (17.4 mbar)
- Gas Power: 28 kW
- Standard gas delivery: Natural Gas G20 (20mbar)
- Gas Type Option: LPG;Town Gas
- Gas Inlet: 1/2"
Key Information:
- If appliance is set up or next to or against temperature sensitive furniture or similar, a safety gap of approximately 150 mm should be maintained or some form of heat insulation fitted.
- Net weight: 79 kg
- Shipping weight: 99 kg
- Shipping height: 540 mm
- Shipping width: 1020 mm
- Shipping depth: 860 mm
- Shipping volume: 0.47 m³
- Front Burners Power: 5.5 - 5.5 kW
- Back Burners Power: 5.5 - 7.5 kW
- Certification group: N9CT
- Back Burners Dimension - mm Ø 60 Ø 100
- Front Burners Dimension - mm Ø 60 Ø 60
