Modular Cooking Range Line

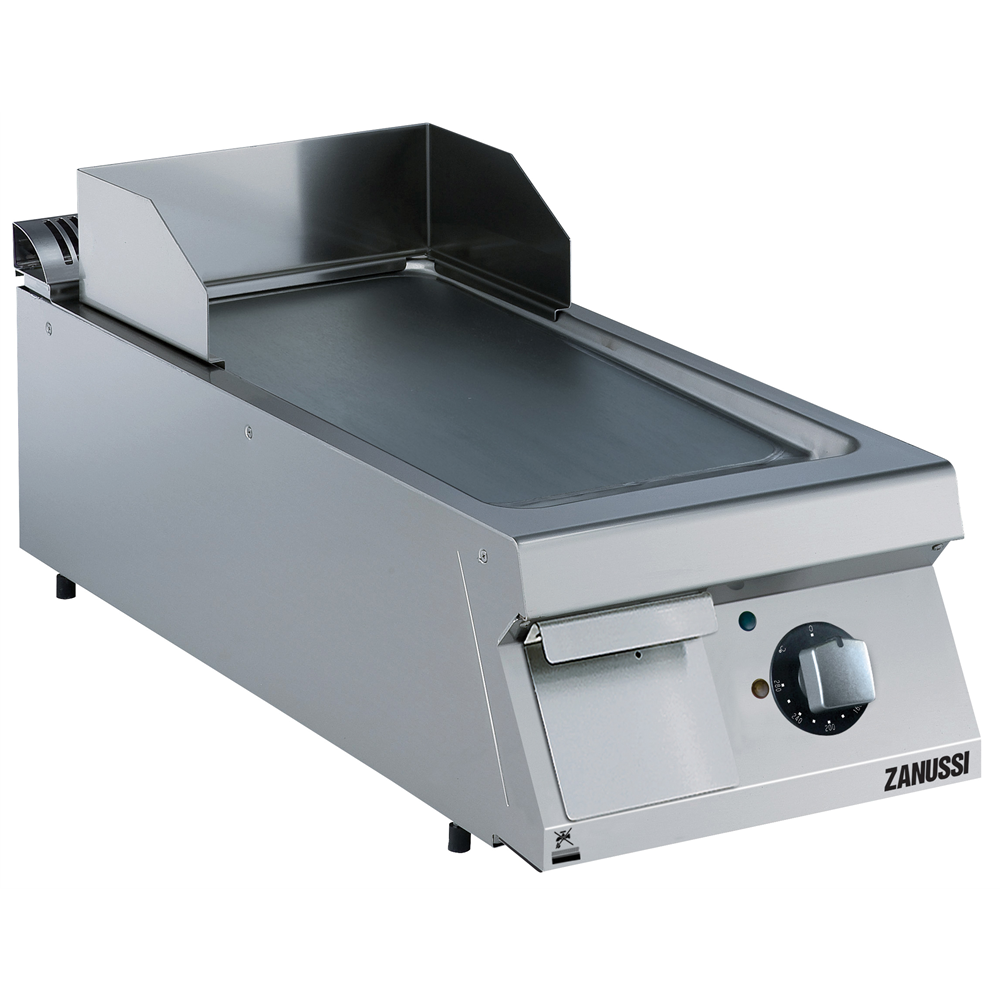

EVO900 400mm Electric Fry Top, Smooth Brushed Chrome Horizontal Plate
392357

Half module electric fry top with smooth brushed chrome cooking plate, horizontal, thermostatic control, scraper and stopper included

Where to buy
  • Features
  • Specifications
  • Documents
  • Accessories
  • Temperature range from 120° up to 280°C.

  • Rough brushed chrome surface is highly resistant to scratches and facilitates cleaning operations at the end of the day.

  • Scraper for smooth plate included as standard.

  • Suitable for countertop installation.

  • Unit to be mounted on open base cupboards, bridging supports or cantilever systems.

  • Large drain hole on cooking surface permits the draining of fat into large 1 liter collector placed under the cooking surface.

  • Electric elements in incoloy positioned under the cooking plate.

  • Safety thermostat and thermostatic control.

  • Stainless steel high splash guards on the rear and sides of cooking surface. Splash guards can be easily removed for cleaning and are dishwasher-safe.

  • The special design of the control knob system guarantees against water infiltration.

  • IPX5 water protection.

  • Cooking surface completely smooth.

  • Cooking surface 15mm thick brushed chrome for optimum grilling results and ease of use.

  • Unit is 900mm deep to give a larger working surface area.

  • All exterior panels in Stainless Steel with Scotch Brite finishing.

  • AISI 304 stainless steel worktop, 2mm thick.

  • Model has right-angled side edges to allow flush fitting joints between units, eliminating gaps and possible dirt traps.

Electric
  • Supply voltage: 380-400 V/3 ph/50-60 Hz
  • Predisposed for:
  • Total Watts: 7.5 kW
Key Information:
  • Working Temperature MIN: 120 °C
  • Working Temperature MAX: 280 °C
  • External dimensions, Width: 400 mm
  • External dimensions, Depth: 900 mm
  • External dimensions, Height: 250 mm
  • Net weight: 55 kg
  • Shipping weight: 55 kg
  • Shipping height: 540 mm
  • Shipping width: 460 mm
  • Shipping depth: 1020 mm
  • Shipping volume: 0.25 m³
  • Cooking surface width: 330 mm
  • Cooking surface depth: 700 mm
Brochures
Range overviews
CAD Drawings
(121,48 KB)
Data Sheet
BIM/Revit
(1,18 MB)
Included Accessories
Quantity
Code
Description
Quantity: 1
Code: 164255
Scraper for smooth plate for fry tops
Quantity: 1
Code: 206296
Stopper for 900 fry top with horizontal plate
Detergents and Chemicals (not included)
Code
Description
Code: 0S2292
