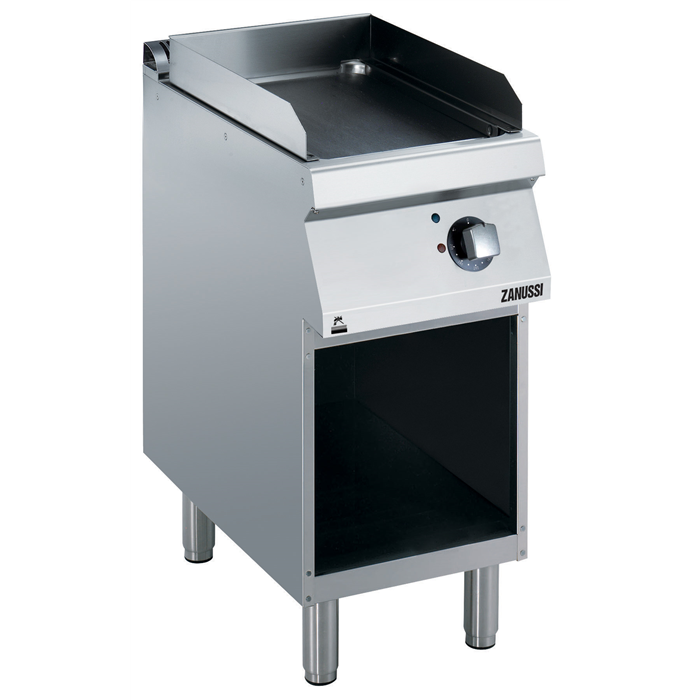

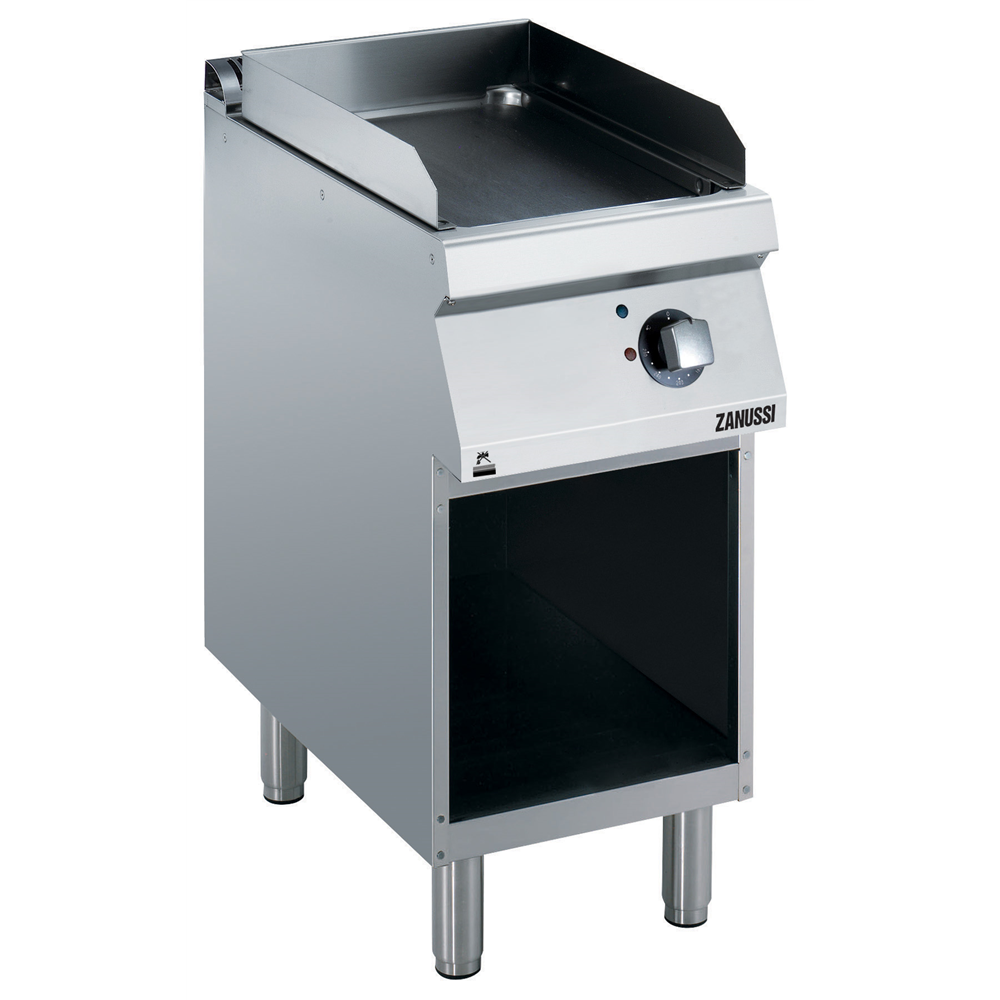

Half module electric fry top on open base with smooth brushed chromed cooking plate, sloped, thermostatic control, scraper included
- Features
- Specifications
- Documents
- Accessories
Main Features
Scrapers with smooth and ribbed blades included as standard.
Scraper for smooth plate included as standard.
Rough brushed chrome surface is highly resistant to scratches and facilitates cleaning operations at the end of the day.
Temperature range from 120° up to 280°C.
Frontal simmering zone.
Infrared heating elements mounted below the cooking surface.
Unit to be mounted on open base cupboards, bridging supports or cantilever systems.
Large drain hole on cooking surface permits the draining of fat into large 1 liter collector placed under the cooking surface.
Large grease collection container available as optional accessory to be installed under top units over open base cupboard.
Safety thermostat and thermostatic control.
Stainless steel high splash guard on the rear and sides of cooking surface. Splash guard can be easily removed for cleaning.
IPx4 water protection.
Construction
Cooking surface 12mm thick brushed chrome for optimum grilling results and ease of use.
Cooking surface completely smooth.
All exterior panels in Stainless Steel with Scotch Brite finishing.
One piece pressed 1.5 mm work top in Stainless steel.
Model has right-angled side edges to allow flush fitting joints between units, eliminating gaps and possible dirt traps.
Key Information:
- If appliance is set up or next to or against temperature sensitive furniture or similar, a safety gap of approximately 150 mm should be maintained or some form of heat insulation fitted.
- Working Temperature MIN: 120 °C
- Working Temperature MAX: 280 °C
- External dimensions, Width: 400 mm
- External dimensions, Depth: 700 mm
- External dimensions, Height: 850 mm
- Net weight: 50 kg
- Shipping weight: 54 kg
- Shipping height: 1140 mm
- Shipping width: 460 mm
- Shipping depth: 820 mm
- Shipping volume: 0.43 m³
- Cooking surface width: 330 mm
- Cooking surface depth: 540 mm
Electric
- Supply voltage: 400 V/3 ph/50-60 Hz
- Predisposed for:
- Electrical power, max: 4.2 kW
- Total Watts: 4.2 kW
