Plug In
Easy CookingPRO Counter for 3 3PH Units
352083

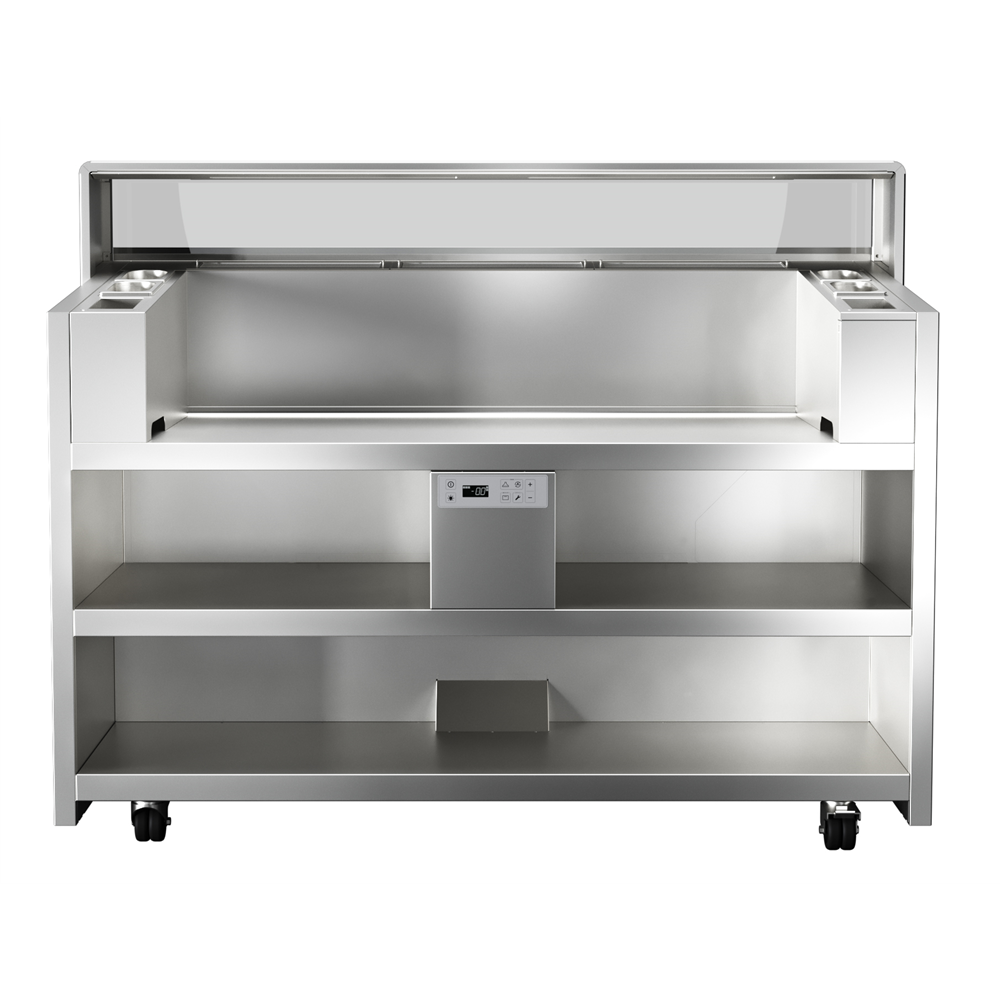

Easy CookingPRO Mobile Counter, suitable for 3 Plug-in appliances with two 1-phase and three 3-phase sockets

Where to buy
  • Features
  • Specifications
  • Documents
  • Accessories
  • Can be combined with up to three tabletop appliances Easy CookingPRO 3PHASE and/or Easy CookingPRO 1PHASE (Plug Type Schuko): flat induction hobs, induction woks, induction griddles.

  • Compact, lightweight and easy to move.

  • Plate holder shelf coupled with tempered glass and lighting for a better visibility from guest side.

  • Designed for Easy CookingPRO Match function for automatic regulation of fan speed according to cooking intensity. Can be activated exclusively with Easy CookingPRO stand alone units.

  • Easy CookingPRO Ventilation is a low noise air filtration system to absorb efficiently grease particles and bad odours in the working area. It is a 2-stage filtering system with stainless steel fat filters and ceramic activated carbon ones.

  • 30 lt neutral drawer - accepting N° 1 GN1/1 - is available as optional accessory.

  • Through the user interface with soft touch buttons the operator can.
    • vary the 4 fan speed;
    • switch on the LED lighting system of the cooking area;
    • display indications on maintenance operations (e.g. on filters) or any anomalous operating conditions.

  • Heavy duty AISI 304 Stainless steel construction.

  • Mounted on 4 swivelling wheels with brakes on the 2 front wheels (on the operator side).

  • Frontal panel in AISI 304 can be customized requiring a special execution.

  • Grease and odours filters are easily accessible and removable from operator's side for efficient maintanance without any tool.

  • Side support frames each holding n.2 GN 1/9 containers and n.1 tools holder. All included in the standard delivery and easily removable for better cleanability.

  • Plug type: IEC/EN 60309-1/2 - 32 amps.

  • IPx4 water protection.

Key Information:
  • Suitable Appliances
  • Frontal power sockets available for Plug-in Units: 3 x 3 Phase Plugs (Plug type IEC/EN 60309-1/2) + 2 x 1 Phase Plugs (Plug Type Schuko)
  • External dimensions, Width: 1653 mm
  • External dimensions, Depth: 788 mm
  • External dimensions, Height: 1284 mm
  • Net weight: 230 kg
Electric
  • Supply voltage: 380-415 V/3N ph/50/60 Hz
  • Electrical power max: 20 kW
  • Plug type: IEC/EN 60309-1/2
Brochures
(2,37 MB)
CAD Drawings
(434,16 KB)
Data Sheet
BIM/Revit
(1,03 MB)
Included Accessories
Quantity
Code
Description
Quantity: 3
Code: 650190
Carbon filter for Mobile Counter
Quantity: 3
Code: 650191
Labyrinth grease filter with stainless steel grid for Mobile Counter
Quantity: 1
Code: 650192
Support frame for containers including 2 x 1/9 GN trays and 1 kitchen tool holder for Mobile Counter, left side
Quantity: 1
Code: 650193
Support frame for containers including 2 x 1/9 GN trays and 1 kitchen tool holder for Mobile Counter, right side
