Pastry and Bakery Line
3 Door Refrigerated Counter, -2°/+7°C, 600X400 grid, no top
- Features
- Specifications
- Documents
- Accessories
Main Features
Suitable for use in ambient temperature of up to 40°C (climatic class 5).
Electronic control panel and digital display.
Electronic control panel and digital display.
Frontal access for easy maintenance.
Frontal access for easy maintenance.
Adjustable temperature range from -2°C to +7°c.
Internal runners removable without any tools for faster cleaning operations.
Suitable for use in ambient temperature of up to 40°C (climatic class 5).
Internal runners removable without any tools for faster cleaning operations.
Adjustable temperature range from -2°C to +7°c.
Adjustable temperature range from -2°C to +7°c.
Electronic control panel and digital display.
Frontal access for easy maintenance.
Internal runners removable without any tools for faster cleaning operations.
Sustainability
Insulation thickness: 60 mm to ensure effective insulation with minimum energy consumption.
Hydrocarbon refrigerant gas R290 for the lowest environmental impact (GWP=3) - CFC and HCFC free.
Removable triple-chamber balloon magnetic gasket to improve insulation and reduce energy consumption and ease of cleaning.
Insulation thickness: 60 mm to ensure effective insulation with minimum energy consumption.
Top energy efficiency (class A) and granted uniformity even at extreme working conditions (class 5; 40°C and 40% humidity): unbeatable performance, certified by energy test protocol UNI EN ISO 22041:2020.
Hydrocarbon refrigerant gas R290 for the lowest environmental impact (GWP=3) - CFC and HCFC free.
Top energy efficiency (class A) and granted uniformity even at extreme working conditions (class 5; 40°C and 40% humidity): unbeatable performance, certified by energy test protocol UNI EN ISO 22041:2020.
Removable triple-chamber balloon magnetic gasket to improve insulation and reduce energy consumption and ease of cleaning.
Construction
Rounded internal corners for ease of cleaning.
The position of the evaporator and the design of the internal ventilation facilitate the uniformity of the temperature.
Stainless steel AISI 304 internal and external panels including back.
3 compartments with 3 doors.
The position of the evaporator and the design of the internal ventilation facilitate the uniformity of the temperature.
Rounded internal corners for ease of cleaning.
Stainless steel AISI 304 internal and external panels including back.
Self closing doors.
Adjustable feet from 140mm to 240mm.
3 compartments with 3 doors.
Self closing doors.
Adjustable feet from 140mm to 240mm.
Adjustable feet from 140mm to 240mm.
The position of the evaporator and the design of the internal ventilation facilitate the uniformity of the temperature.
3 compartments with 3 doors.
Stainless steel AISI 304 internal and external panels including back.
Rounded internal corners for ease of cleaning.
Self closing doors.
Electric
- Supply voltage: 230 V/1N ph/50 Hz
- Electrical power, max: 0.25 kW
Refrigeration Data
- Control type:
- Refrigeration power at evaporation temperature: -10 °C
- Operating temperature min.: -2 °C
- Operating temperature max.: 7 °C
Key Information:
- Net Volume: 360 lt
- N° of doors: 3
- Door hinges:
- External dimensions, Width: 2006 mm
- External dimensions, Depth: 790 mm
- External dimensions, Depth with Doors Open: 1280 mm
- External dimensions, Height: 800 mm
- Type of external material: Stainless Steel AISI 304 Scotch Brite
- Type of internal material: 304 AISI
- Internal side panels material: 304 AISI
- Gross capacity: 545 lt
- Type of model (EU Regulation. 2015/1094): counter chilled
Sustainability
- Refrigerant type: R290
- GWP Index: 3
- Energy Class (EU Reg. 2015/1094): A
- Yearly and daily energy consumption (EU Reg. 2015/1094): 515kWh/year - 1.41kWh/24h
- Climate class (EU Reg. 2015/1094): Heavy Duty (5)
- Energy Efficiency Index-EEI (EU Reg. 2015/1094): 22
Brochures
CAD Drawings
Data Sheet
Leaflets

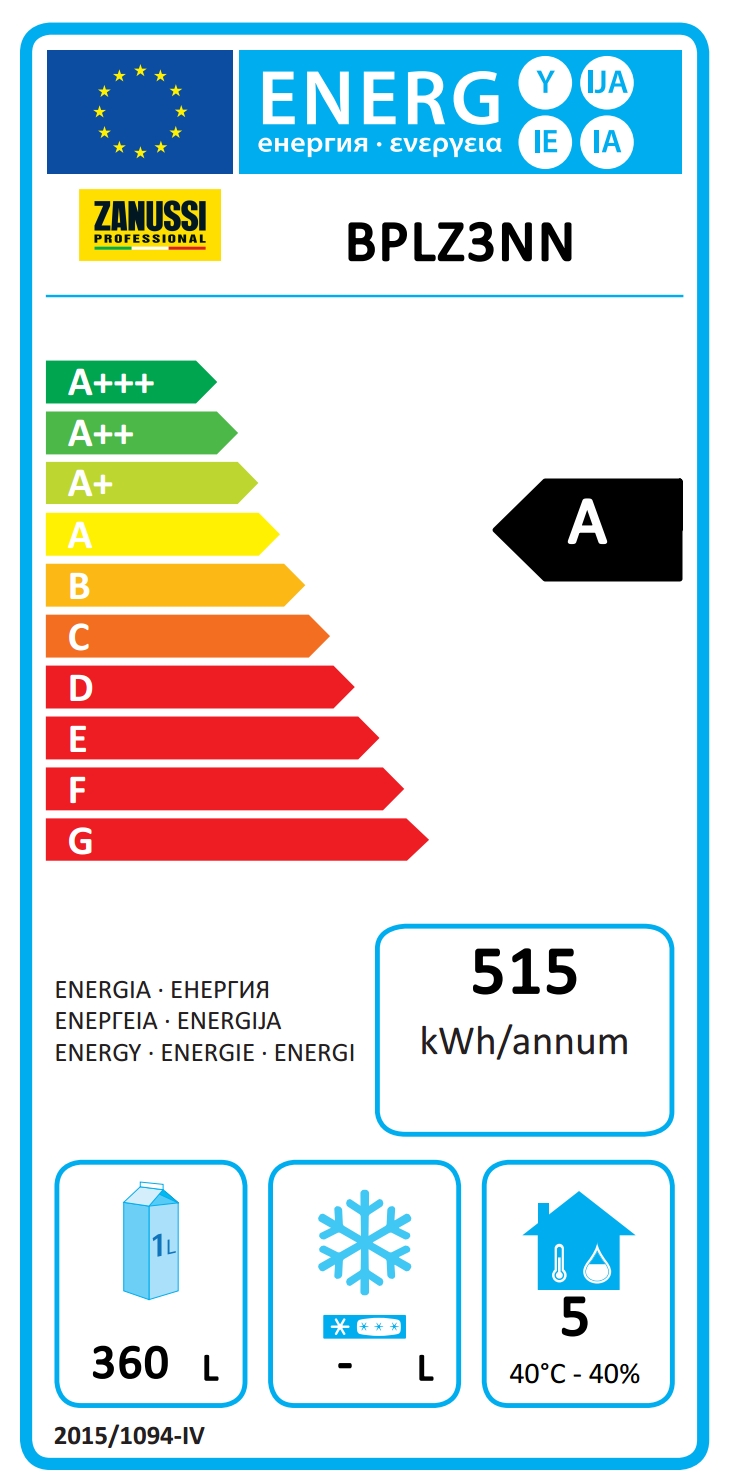

Energy Label
BIM/Revit
