NPT Active HP

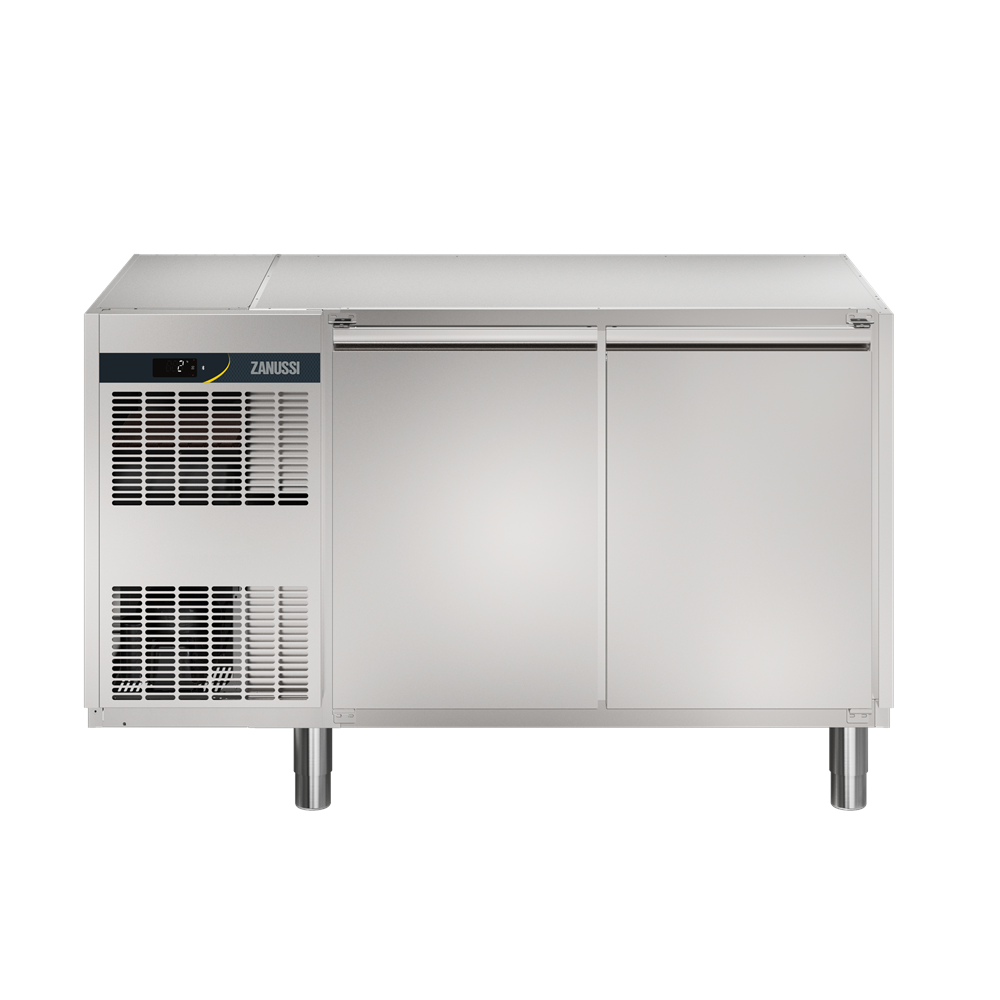

Premium Refrigerated Counter - 290lt, 2-Door, No Top 111020
Connectivity ready for real time access to connected appliances from remote and data monitoring (requires optional accessory).
Equipped with forced air circulation system for rapid cooling and temperature distribution within the cell.
ACTIVE DEFROST - fully automatic defrost starts only when ice is actually building-up in the evaporator and adapts the defrosting duration to guarantee perfect ice removal while optimizing energy efficiency consumption.
Certified safety CE requirements.
Frontal and easy access to all components in the cooling unit.
Fully removable cooling unit to facilitate maintenance.
Preservation performances and temperature uniformity within the cell guaranteed at 5-HEAVY DUTY (40°C) working conditions according to EN16825:2016 test protocol.
CFC and HCFC free, highly ecological refrigerant type: R290 (ecological gas in foam: cyclopentane). Hydrocarbon refrigerant gas R290 for the lowest environmental impact (GWP=3), to reduce green house and ozone depletion effects.
Top energy efficiency (class A) and granted uniformity even at extreme working conditions (class 5; 40°C and 40% humidity): unbeatable performance, certified by energy test protocol EN16825:2016.
Hot gas automatic evaporation of defrost water.
Adjustable temperature range from -2 °C to +10 °C to suit meat, fish and dairy storage requirements.
Large digital white-digit display with humidity selection button (3 preset level), internal temperature display and setting, manual activation of defrost cycle and turbo frost cycle (to rapidly cool warm loads).
Tropicalized unit (43°C ambient temperature).
Fitted with 90 mm thickness of cyclopentane insulation for best insulating performance (thermal conductivity: 0,020 W/m*K) and lowest environmental impact (GWP=3).
0mm clearance installation space: tower configuration cooling unit guarantee performance with frontal ventilation only; this unique solution allows installation against the wall or side by side with other appliances, even on the cooling unit side to maximize the use of kitchen space.
Combination of doors and drawers to suit any configuration needed, with the possibility to change the configuration on site. Right cooling unit available on request.
Fully compliant HACCP digital control: when temperature exceeds critical limits, acoustic and visual alarms are activated. Up to two months of event are kept in memory.
Anti-tilt runners accept GN 1/1 containers.
Self closing stainless steel doors (< 90°).
Prearranged to fit RS485 port to facilitate connection to a remote computer and integrated HACCP systems.
Hydrocarbon refrigerant gas R290 for the lowest environmental impact (GWP=3) - CFC and HCFC free.
Removable triple-chamber balloon magnetic gasket to improve insulation and reduce energy consumption and ease of cleaning.
Mounted on stainless steel feet to give 150 mm (-5/+50 mm) clearance for ease of cleaning the floor.
External bottom panel in stainless steel.
External back panel in galvanized steel.
Built-in refrigeration unit.
Interior base with rounded corners, pressed from a single sheet.
Ease of cleaning and high hygiene standards thanks to the rounded internal corners, the easily removable runners, grids and air conveyors.
Internal structure with 15 charging positions (3 cm pitch) available to host GN 1/1 grids, ensuring higher net capacity and a greater storage space.
Developed and produced in ISO 9001 and ISO 14001 certified factory.
2 compartments with 2 doors.
Fault code display.
- Supply voltage: 220-240 V/1 ph/50 Hz
- Electrical power max.: 0.25 kW
- Defrost Power: 0.29 kW
- Current consumption: 1.8 Amps
- Plug type: CE-SCHUKO
Product Information (EU Regulation 2015/1094)
- Energy Class: A
- Yearly and daily energy consumption: 456kWh/year - 1kWh/24h
- Climate class: Heavy Duty (5)
- Energy Efficiency Index (EEI): 19,86
- Gross capacity: 290 lt
- Net Volume: 198 lt
- Door hinges: 1 Left+1 Right
- External dimensions, Width: 1341 mm
- External dimensions, Depth: 700 mm
- External dimensions, Height: 850 mm
- Internal Dimensions, Width: 798 mm
- Internal Dimensions, Depth: 560 mm
- Internal Dimensions, Height: 550 mm
- Net weight: 100 kg
- Shipping volume: 1.09 m³
- Depth with doors open: 1110 mm
- Height adjustment: -5/50 mm
- Control type: Digital
- Compressor power: 1/4 hp
- Refrigerant type: R290
- GWP Index: 3
- Refrigeration power: 320 W
- Refrigeration power at evaporation temperature: -10 °C
- Refrigerant weight: 70 g
- Min/Max internal humidity: 40/85
- Operating temperature min.: -2 °C
- Operating temperature max.: 10 °C
- Operating mode: Ventilated
